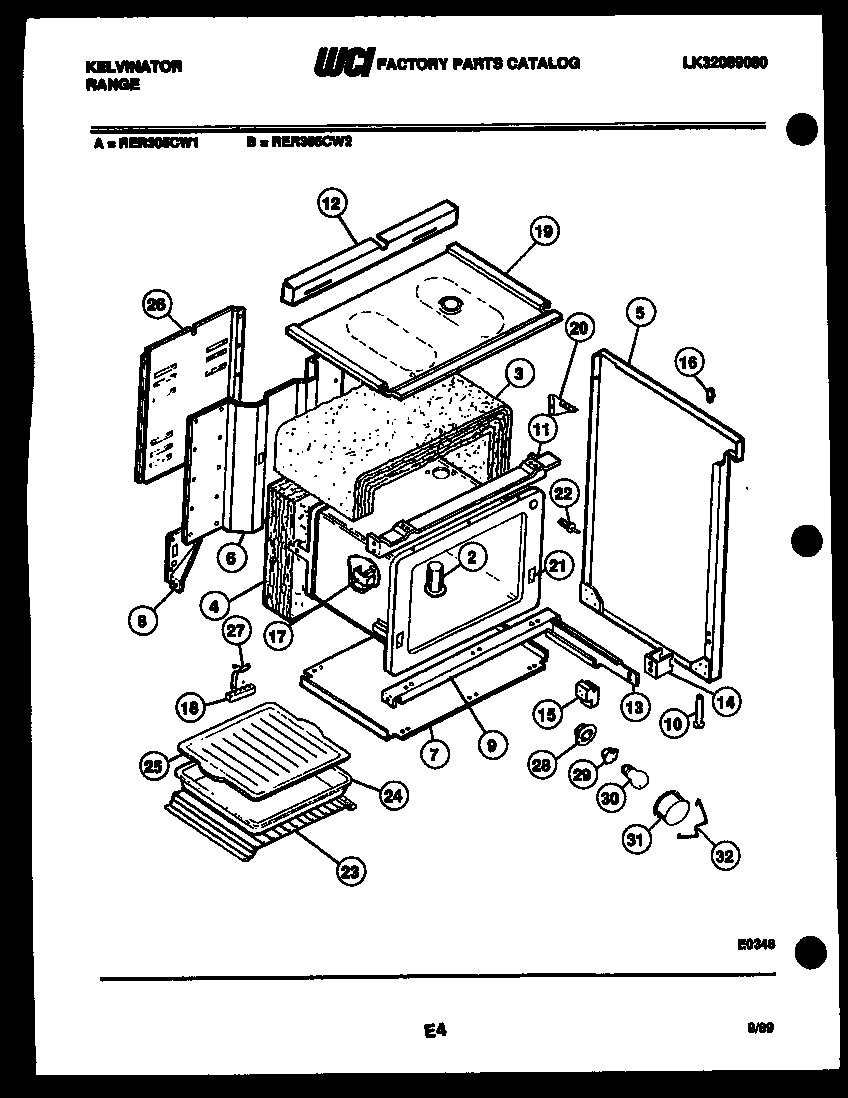

RER305CT2 07 – BODY PARTS
Written by
in
RER305CT2 07 – BODY PARTS
Products
Position
Product
*18001
ANTI-TIP KIT, (NON-ILLUSTRATED)
2
WCI 08012541
3
INSULATION – OVEN WRAP
4
INSULATION-OVEN BACK
5A
PANEL-END RH-WHEAT
5
WCI K5024609
6
WCI 3017575
7
WCI 3203574
8
WCI 3017481
8A
WCI 3017482
9
CHANNEL – OVEN SUPPORT LOWER
10
LEG, LEVELLER (4)
11
WCI 3200926
12
WCI 3017633
13
WCI 08015746
13A
RAIL, DRAWER LH
14
SPACER, RAIL
15
GUIDE
16
BUMPER
17
BRACKET THERM. BULB
18
5304409888 Frigidaire Oven Terminal Block with Hardware
19
WCI 08012542
20
GUSSET, BACKGRD (2)
21
OVEN LINER
22
WCI K5294301
23
316067902 Frigidaire Oven Rack
24
WCI 3205232
25
WCI 3205234
26
COVER – WIRE
27
STRAP-GROUND
28
CUP, OVEN LT
29
316116400 Frigidaire Oven Light Socket
30
316538904 Frigidaire Oven Lamp Light
31
5304524341 Frigidaire Lens
32
RETAINING WIRE
←
