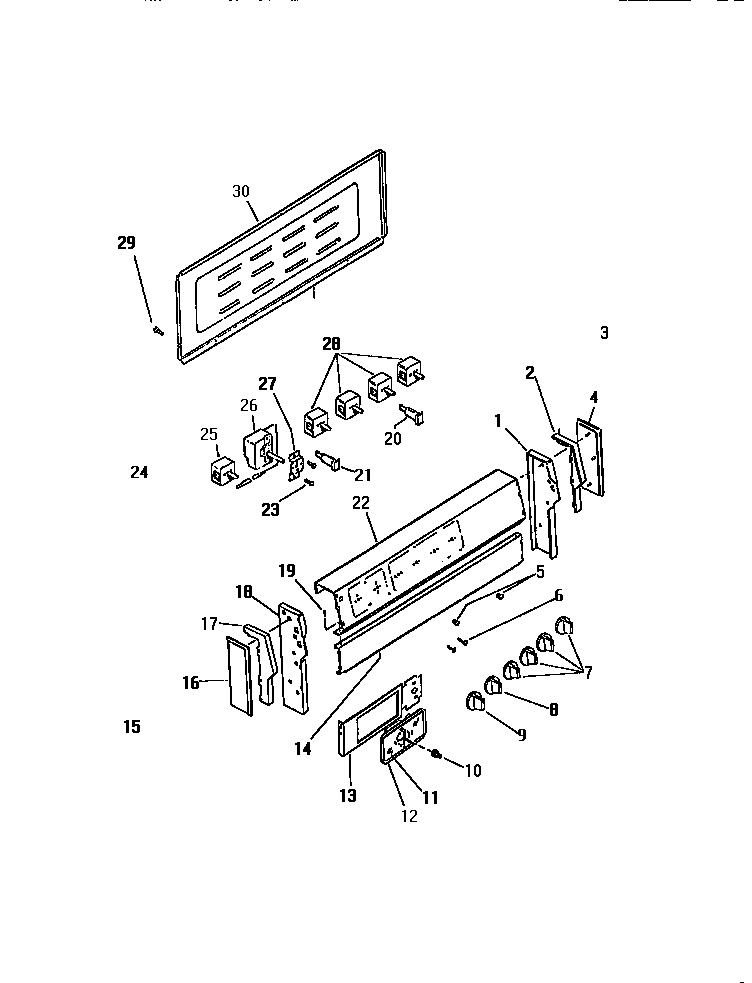

RER305CV0 02 – BACKGUARD

Products

Position	Product
*19760	SCREW
1	SUPPORT-BACKGRD RH
2	WCI K5128105
3	NUT (3)
4	WCI K5128001
5	WCI K5139002
9	KNOB OVEN SELECTOR
10	WCI K1167946
11	GLASS
12	WCI K5260301
13	BRACKET MOUNTING
14	WCI K5137604
16	WCI K5128002
17	WCI K5128106
18	WCI K5127702
20	SIGNAL LIGHT-SURF UNIT
21	SIGNAL LIGHT – OVEN
23	SCREW
24	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
25	SWITCH SELEC.
26	WCI K5132401
27	BRACKET
28 B	5303935086 Frigidaire Oven Top Burner Switch Kit
28	SWITCH-SURFACE UNIT (4)
29	08002868 Frigidaire 0 Screw Assembly
30	COVER, WIRE
