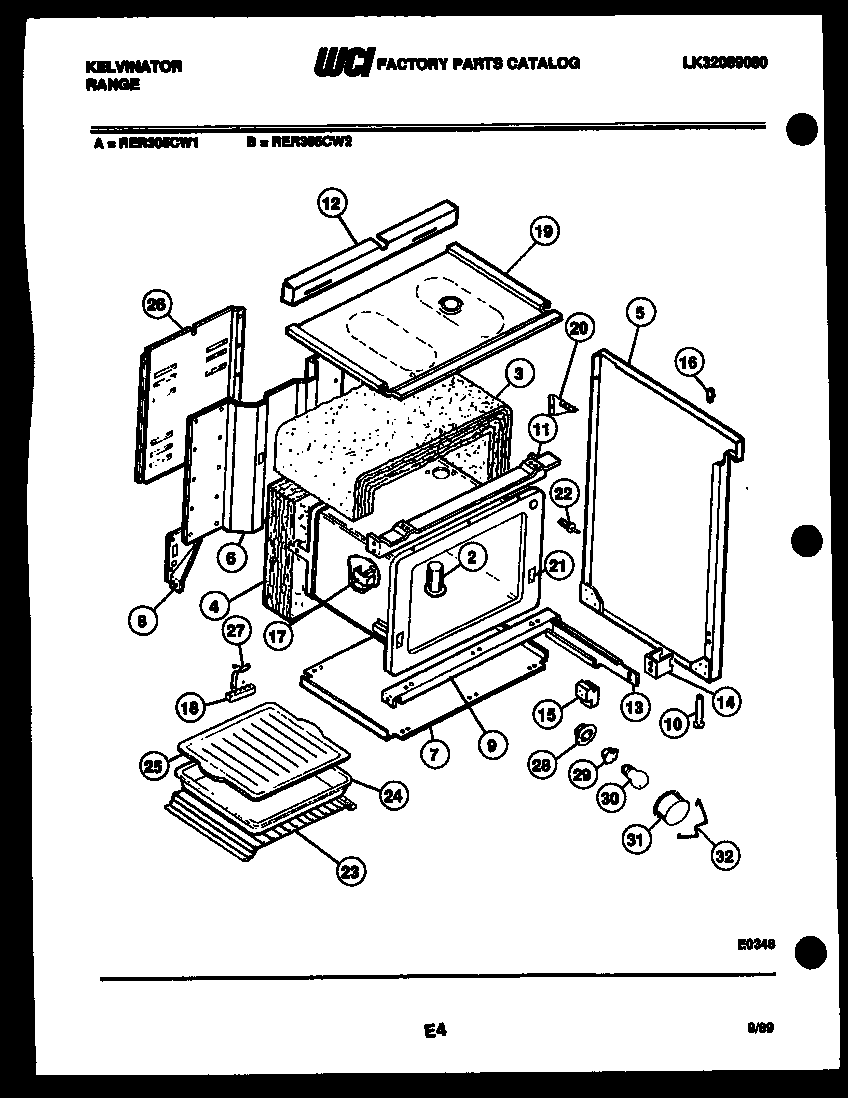

RER305CW2 07 – BODY PARTS

Products

Position	Product
*18001	ANTI-TIP KIT, (NON-ILLUSTRATED)
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
5	WCI K5024601
5A	WCI K5025602
6	WCI 3017575
7	WCI 3203574
8	WCI 3017481
8A	WCI 3017482
9	CHANNEL – OVEN SUPPORT LOWER
10	LEG, LEVELLER (4)
11	WCI 3200926
12	WCI 3017633
13A	RAIL, DRAWER LH
13	WCI 08015746
14	SPACER, RAIL
15	GUIDE
16	BUMPER
17	BRACKET THERM. BULB
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
20	GUSSET, BACKGRD (2)
21	OVEN LINER
22	WCI K5294301
23	316067902 Frigidaire Oven Rack
24	WCI 3205232
25	WCI 3205234
26	COVER – WIRE
27	STRAP-GROUND
28	CUP, OVEN LT
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32	RETAINING WIRE
