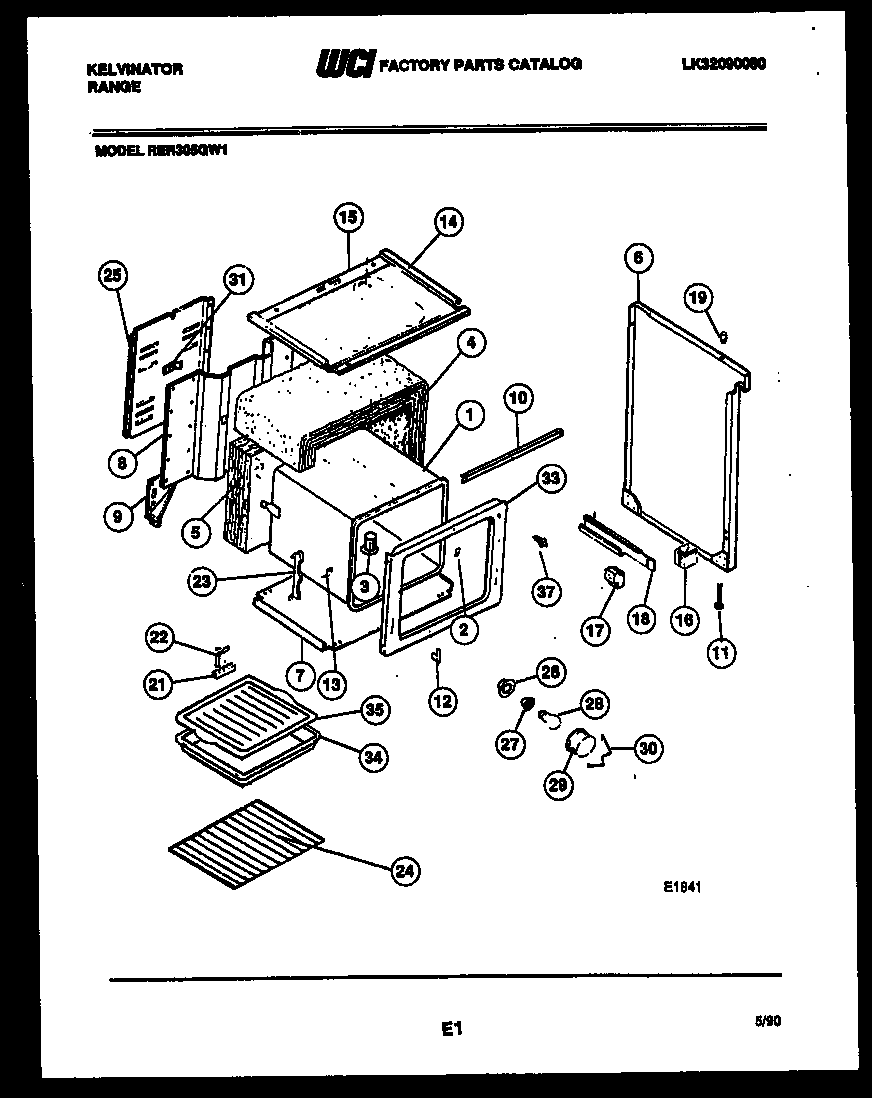

RER305GW1 07 – BODY PARTS

Products

Position	Product
*17019	WCI 5300009126
*17019	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	BODY-OVEN
2	WCI 3202082
3	WCI 08012541
4	INSULATION - OVEN WRAP
5	INSULATION
6	SIDE PANEL, RH WHITE
6	SIDE PANEL, LH WHITE
7	WCI 3206275
8	PANEL-BACK
9	WCI 3017482
9	WCI 3017481
10	WCI 5303207391
11	LEG, LEVELLER (4)
12	WCI 3019063
13	WCI 3201632
14	WCI 08012542
15	WCI 3205755
16	SPACER, DRAWER RAIL (2)
17	GUIDE-DRAWER FRNT (2)
18	RAIL, DRAWER LH
18	WCI 5308015746
19	BUMPER, COOKTOP (4)
21	5304409888 Frigidaire Oven Terminal Block with Hardware
22	PLATE=GROUND STRAP
23	WCI 3201631
24	316067902 Frigidaire Oven Rack
25	WIRE, COVER
26	WCI 3051511
27	316116400 Frigidaire Oven Light Socket
28	316538904 Frigidaire Oven Lamp Light
29	5304524341 Frigidaire Lens
30	RETAINER-LENS
31	WCI 3016281
33	WCI 5303207446
34	WCI 3205539
35	WCI 3205234
37	WCI 5301314211
