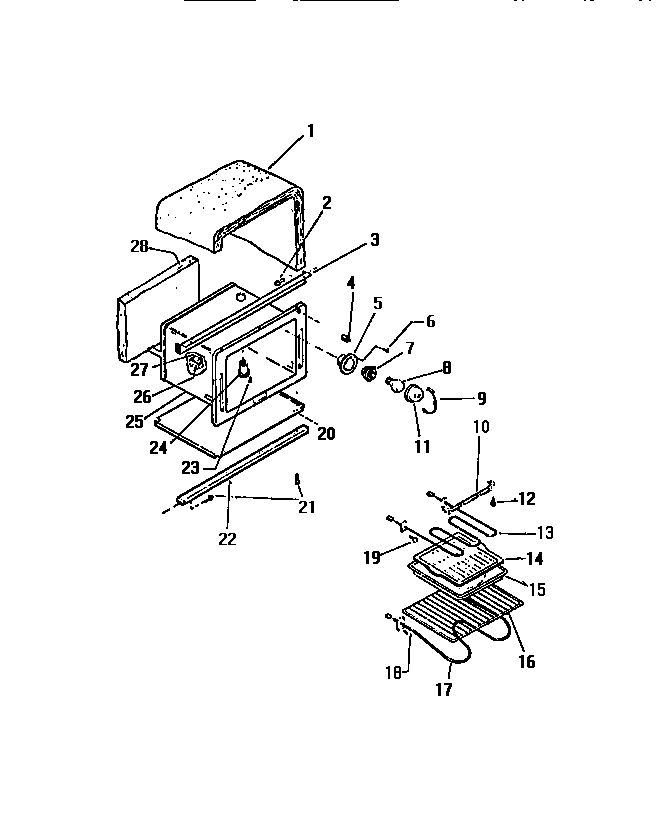

RER306CD0 05 – OVEN CAVITY

RER306CD0 05 – OVEN CAVITY

Written by

in

RER306CD0 05 – OVEN CAVITY

Products

PositionProduct
1INSULATION, WRAP
3CHANNEL-OVEN SUPT
4WCI K5294301
5CUP, OVEN LT
7316116400 Frigidaire Oven Light Socket
8316538904 Frigidaire Oven Lamp Light
9RETAINING WIRE
10HANGER
115304524341 Frigidaire Lens
135303051516 Frigidaire Broil Element
14GRILLE, BROILER
155304442087 Frigidaire Range Wall Oven Broil Pan and Insert
16RACK (2)
175303051519 Frigidaire Oven 2600W Bake Element
20WCI K1315107
21SCREW
22CHANNEL, OV. SUPT.
23SCREW
24VENT TUBE
25WCI K1325538
26BRACKET THERM. BULB
2708002868 Frigidaire 0 Screw Assembly
28INSULATION, BACK
