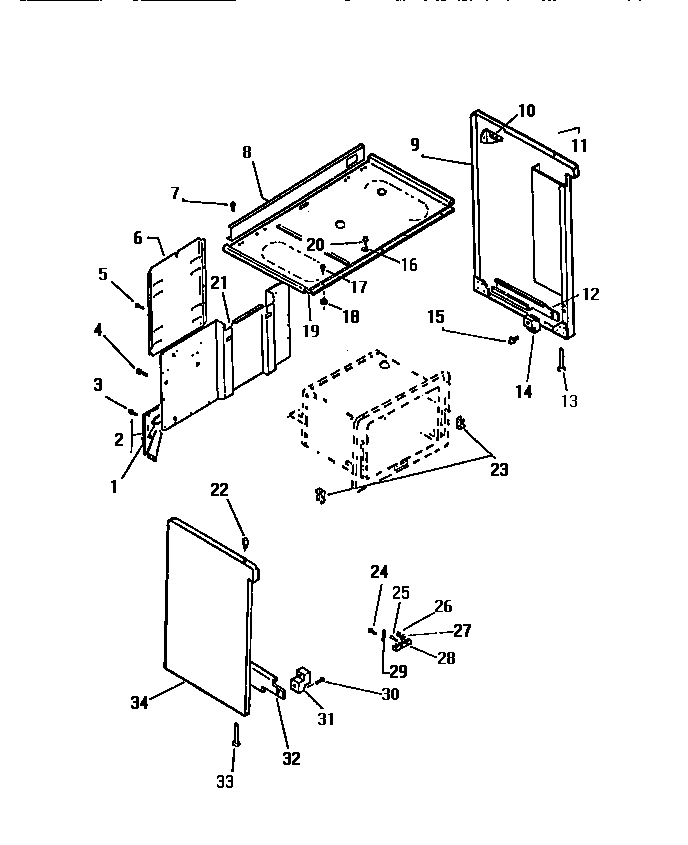

RER306CV0 06 – CABINET

Products

Position	Product
1	WCI K1307086
2A	WCI K1325114
2	WCI K1325113
4A	WCI K1099962
6	COVER, WIRE
8	WCI K5287902
9D	WCI K5024807
10	GUSSET, BACKGRD (2)
11	BUMPER
12	RAIL, DWR., RH
13	LEG
16	WASHER, PADDED
17	WCI KGM159909
18	5303013272 Frigidaire Oven Nut
19	WCI K5025802
21	BACK
22	WCI K1307110
23	SPACER, RAIL
24	08002868 Frigidaire 0 Screw Assembly
25	SCREW
26	WCI K1266
27	WCI K1312074
28	5304409888 Frigidaire Oven Terminal Block with Hardware
29	STRAP-GROUND
30	SCREW
31	GUIDE
32	RAIL, DWR, LH
33	WCI K1322906
