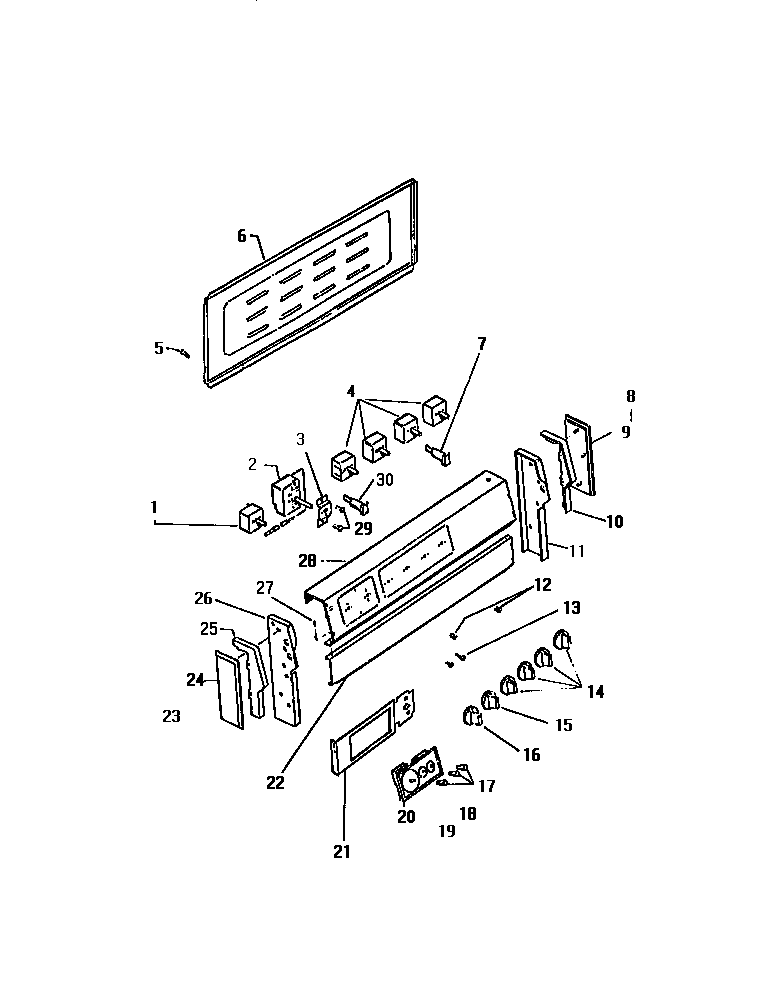

| 1 | WCI K5146703 |
| 2 | WCI K5275501 |
| 3 | BRACKET |
| 4 | 5303935086 Frigidaire Oven Top Burner Switch Kit |
| 4B | SWITCH-SURFACE UNIT (4) |
| 6 | COVER, WIRE |
| 7 | SIGNAL LIGHT-SURF UNIT |
| 8 | NUT (3) |
| 9 | WCI K5128001 |
| 10 | WCI G5128105 |
| 11 | SUPPORT-BACKGRD RH |
| 12 | WCI K5139002 |
| 13 | SCREW - THERMO BRACKET 6-32 X 3/16 (2) |
| 16 | KNOB OVEN SELECTOR |
| 17 | WCI K1167946 |
| 18 | WCI K1167966 |
| 19 | SCREW |
| 20 | TIMER |
| 21 | BRACKET MOUNTING |
| 22A | PANEL BACKSPLASH, ALMOND |
| 24 | WCI K5128002 |
| 25 | WCI K5128106 |
| 26 | WCI K5127702 |
| 27 | 08002868 Frigidaire 0 Screw Assembly |
| 28 | PANEL-BACKGUARD |
| 29 | SCREW |
| 30 | WCI K5138902 |
