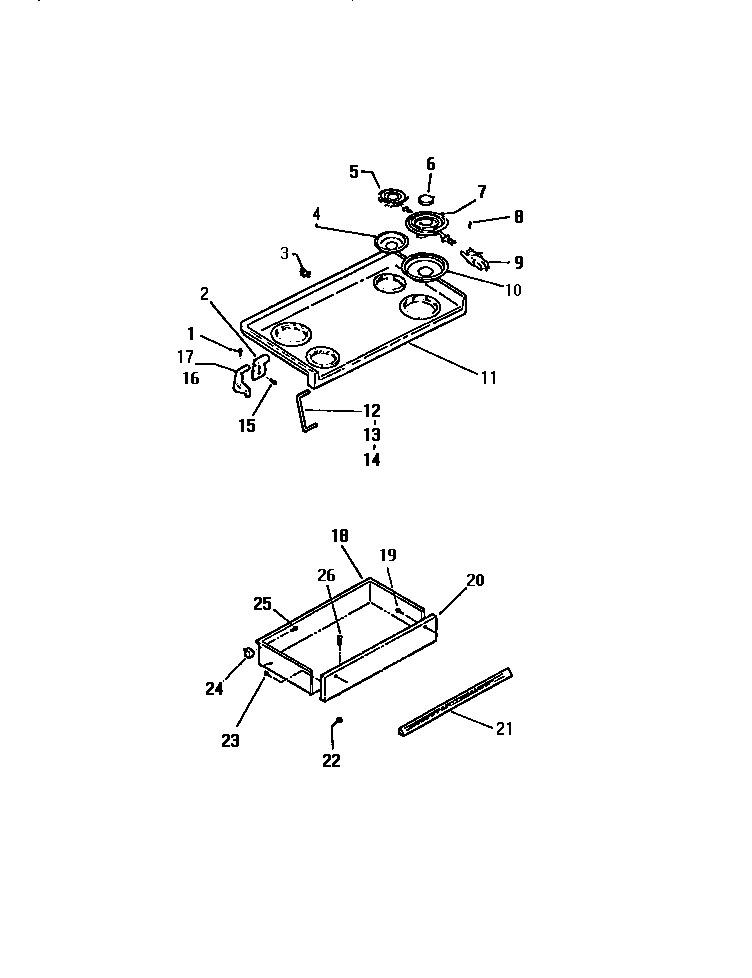

RER307CD0 03 – TOP/DRAWER

Products

Position	Product
2	WCI K1315632
3	WCI K1315541
4	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5	318372210 Frigidaire Oven Range 6" 1250W Surface Element
6	WCI K1167206
7	5308011964 Frigidaire Surface Element P1
8	5308014215 Frigidaire Oven Screw
9	5303935058 Frigidaire Oven Burner Receptacle Kit
10	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
11A	WCI K5270112
12	ROD
13	RETAINER
14	WCI K1164550
15	08002868 Frigidaire 0 Screw Assembly
16	WCI K1315631
17	WCI K1315630
18	DRAWER
21	HANDLE – DRAWER (CHROME)
22	5303013272 Frigidaire Oven Nut
24	GUIDE
26	SCREW
