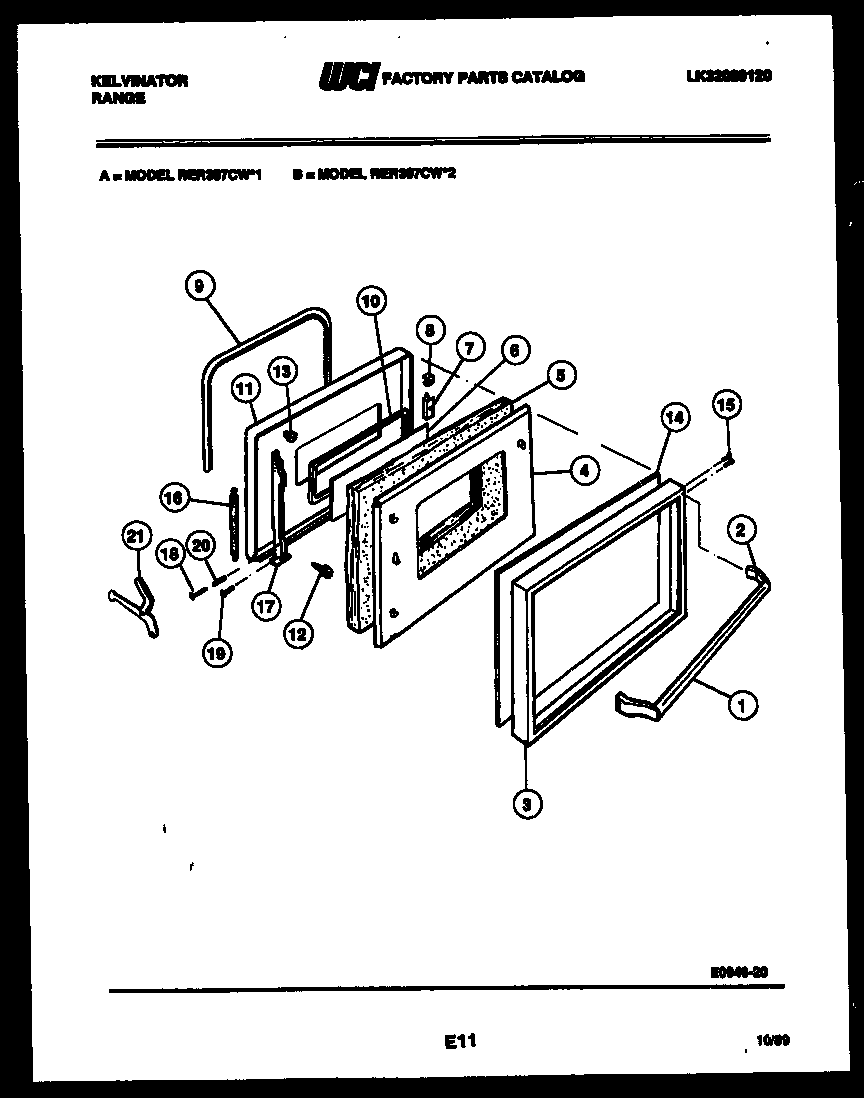

RER307CD2 05 – DOOR PARTS

Products

Position	Product
1	HANDLE ASSY (INCLUDES STANCHION)
2	WCI 08015924
3	FRAME - DOOR
4	WCI 3017200
5	INSULATION-OVEN BACK
6	GLASS - INNER DOOR
7	RETAINER - GLASS (4)
8	SPACER (4)
9	WCI 08003268
10	SEAL WINDOW
11	WCI 3205684
12	BUMPER BTM
13	BUMPER TOP (2)
14	GLASS - OUTER
15	SCREW
16	WCI 08003264
17	WCI 3051822
18	RIVET
19	WCI 08012004
20	ROLLER PACKAGE-OVEN DOOR (2)
21	ARM ASSY.
