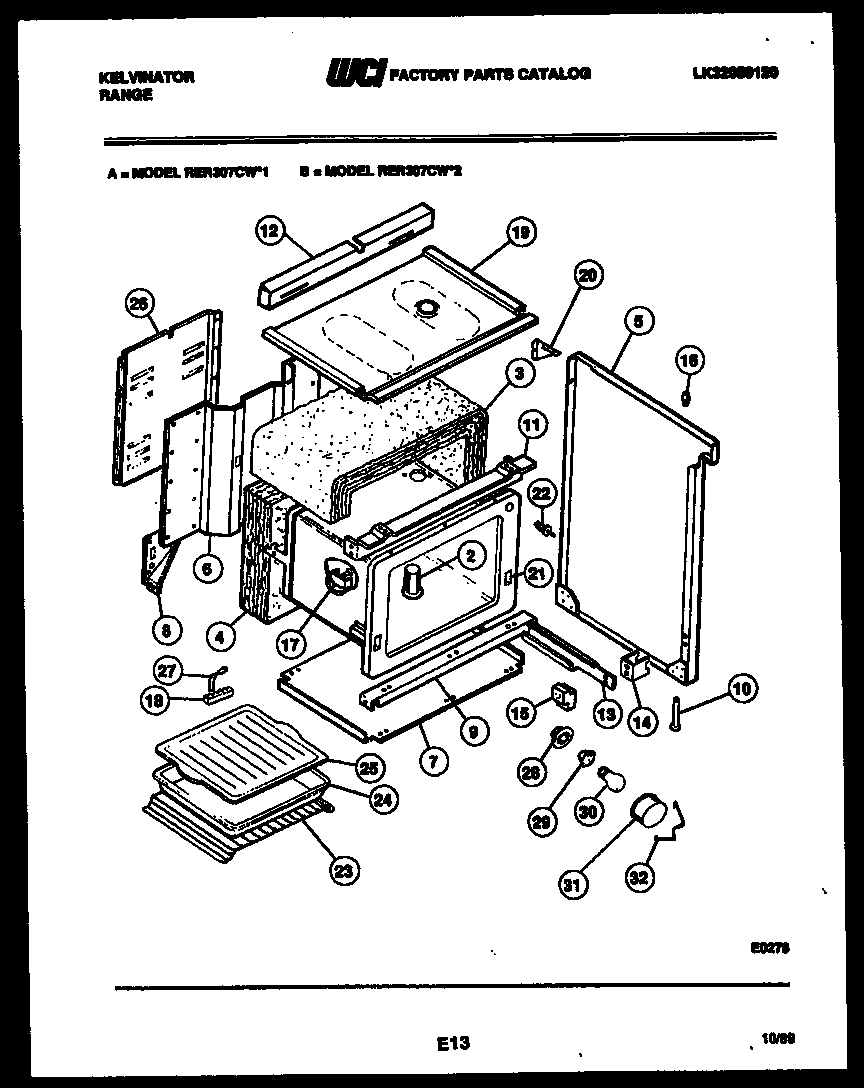

RER307CD2 06 – BODY PARTS

RER307CD2 06 – BODY PARTS

Written by

in

RER307CD2 06 – BODY PARTS

Products

PositionProduct
*10579ANTI-TIP KIT, (NON-ILLUSTRATED)
1BODY – DRAWER
2PANEL DRAWER, ALMOND
2WCI 08012541
3WCI 08014202
3INSULATION – OVEN WRAP
4INSULATION-OVEN BACK
5END PANEL, RH, ALMOND
5END PANEL, LH, ALMOND
5GUIDE
6WCI 3017535
7WCI 3203574
8WCI 3017482
8WCI 3017481
9CHANNEL – OVEN SUPPORT LOWER
10LEG, LEVELLER (4)
11WCI 3200926
12WCI 3017633
13WCI 08015746
13RAIL, DRAWER LH
14SPACER, RAIL
15GUIDE
16BUMPER
17BRACKET THERM. BULB
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI 08012542
20GUSSET, BACKGRD (2)
21OVEN LINER
22WCI K5294301
23316067902 Frigidaire Oven Rack
24WCI 3205232
25WCI 3205234
26COVER – WIRE
27STRAP-GROUND
28CUP, OVEN LT
29316116400 Frigidaire Oven Light Socket
30316538904 Frigidaire Oven Lamp Light
315304524341 Frigidaire Lens
32WCI 08011087
