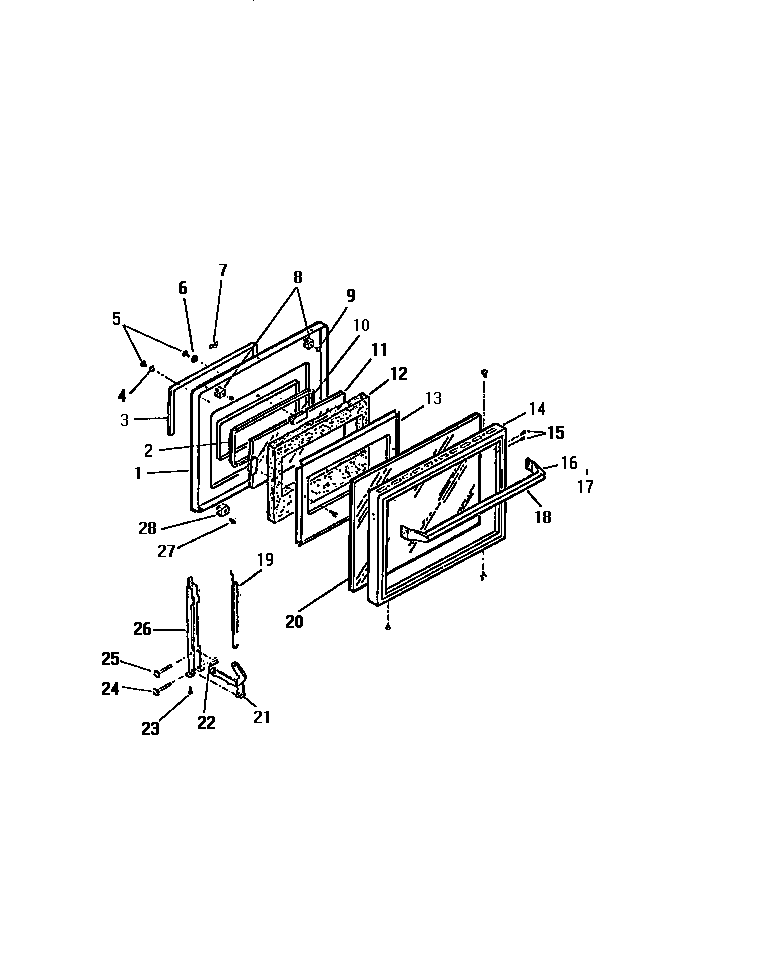

RER307CT0 04 – DOOR

Products

Position	Product
1	WCI K1325506
2	WCI K1325686
3	GASKET (WITH CLIPS)
6	WASHER, PADDED
7	WCI K1313677
8	WCI K1324236
9	BUMPER TOP (2)
10	WCI K1325510
11	WCI K1326511
12	WCI K1325629
13	WCI K1325509
14	FRAME – CHROME OVEN DOOR
15	SCREW
16	HANDLE ASSY (INCLUDES STANCHION)
17	STANCHION-HANDLE (2)
18	WCI K5026807
19	SPRING
20	WCI K5027201
21	ARM ASSY.
22	WCI K1309794
23	WCI K1164550
24	AXLE
25	RIVET
26	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
27	BUMPER BTM
28	SPACER (4)
