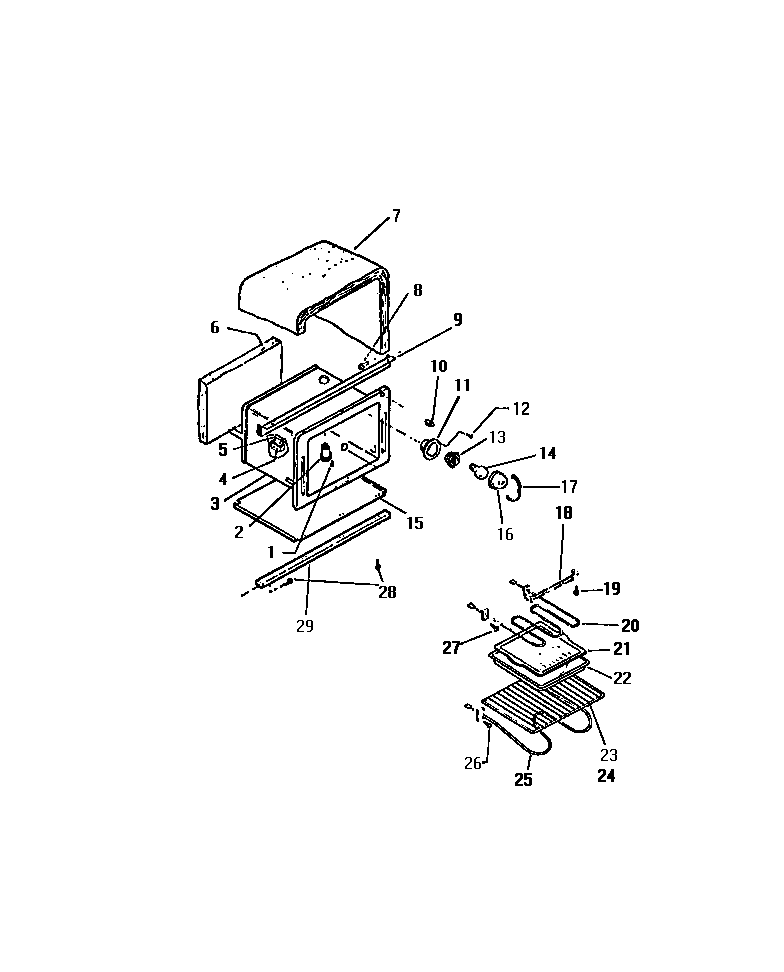

RER307CT0 05 – OVEN CAVITY

Products

Position	Product
1	SCREW
2	VENT TUBE
3	WCI K1325538
4	BRACKET THERM. BULB
6	WCI K1311328
7	INSULATION, WRAP
9	CHANNEL-OVEN SUPT
10	WCI K5294301
11	CUP, OVEN LT
13	316116400 Frigidaire Oven Light Socket
14	316538904 Frigidaire Oven Lamp Light
15	WCI K1315107
16	5304524341 Frigidaire Lens
17	RETAINING WIRE
18	HANGER
20	5303051516 Frigidaire Broil Element
21	GRILLE, BROILER
22	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
23	RACK (2)
24	WCI K1311571
25	5303051519 Frigidaire Oven 2600W Bake Element
27	08002868 Frigidaire 0 Screw Assembly
28	SCREW
29	CHANNEL, OV. SUPT.
