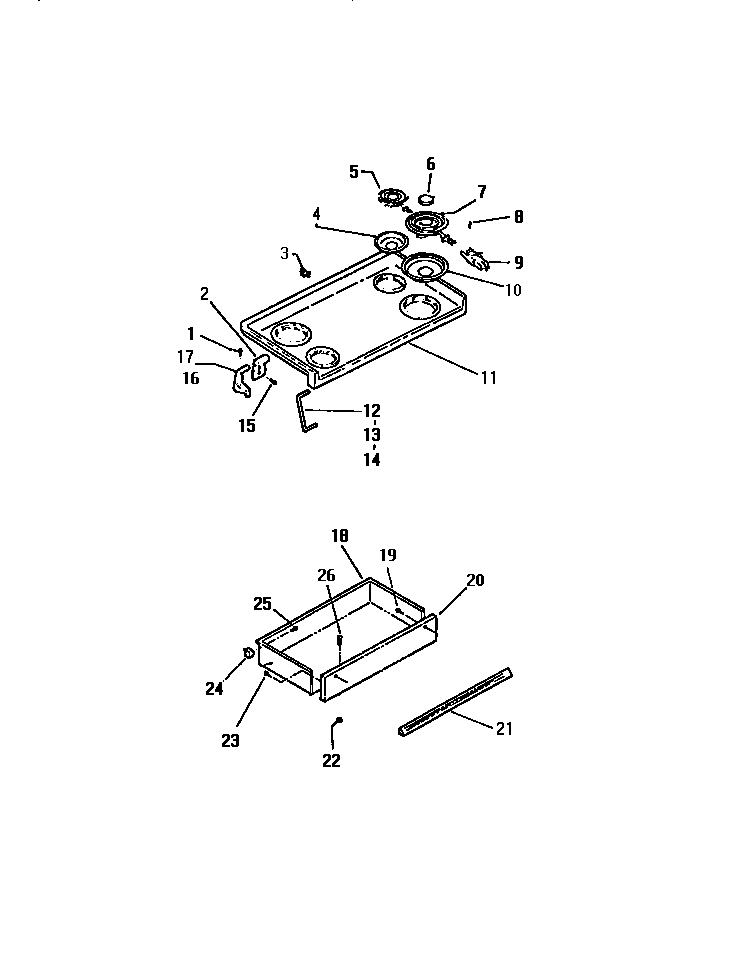

RER307CV0 03 – TOP/DRAWER

RER307CV0 03 – TOP/DRAWER

Written by

in

RER307CV0 03 – TOP/DRAWER

Products

PositionProduct
2WCI K1315632
3WCI K1315541
4316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5318372210 Frigidaire Oven Range 6" 1250W Surface Element
6WCI K1167206
75308011964 Frigidaire Surface Element P1
85308014215 Frigidaire Oven Screw
95303935058 Frigidaire Oven Burner Receptacle Kit
10316048413 Frigidaire Oven Range Chrome 8" Drip Bow
11CWCI K5270110
12ROD
13RETAINER
14WCI K1164550
1508002868 Frigidaire 0 Screw Assembly
16WCI K1315631
17WCI K1315630
18DRAWER
20APANEL DRAWER, ALMOND
20CWCI K1325098
21HANDLE – DRAWER (CHROME)
225303013272 Frigidaire Oven Nut
24GUIDE
26SCREW
