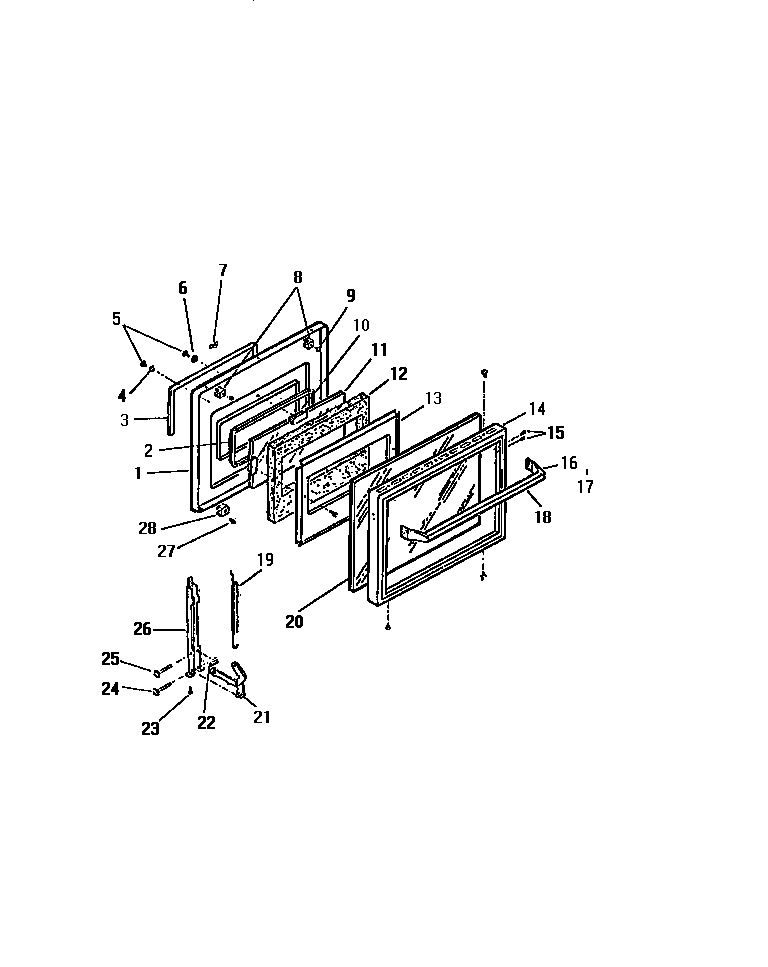

| 1 | WCI K1325506 |
| 2 | WCI K1325686 |
| 3 | GASKET (WITH CLIPS) |
| 6 | WASHER, PADDED |
| 7 | WCI K1313677 |
| 8 | WCI K1324236 |
| 9 | BUMPER TOP (2) |
| 10 | WCI K1325510 |
| 11 | WCI K1326511 |
| 12 | WCI K1325629 |
| 13 | WCI K1325509 |
| 14 | FRAME - CHROME OVEN DOOR |
| 15 | SCREW |
| 16 | HANDLE ASSY (INCLUDES STANCHION) |
| 17 | STANCHION-HANDLE (2) |
| 18 | WCI K5026807 |
| 19 | SPRING |
| 20 | WCI K5027201 |
| 21 | ARM ASSY. |
| 22 | WCI K1309794 |
| 23 | WCI K1164550 |
| 24 | AXLE |
| 25 | RIVET |
| 26 | CHANNEL ASSY (COMPLETE W/ROLLER & STUD) |
| 27 | BUMPER BTM |
| 28 | SPACER (4) |
