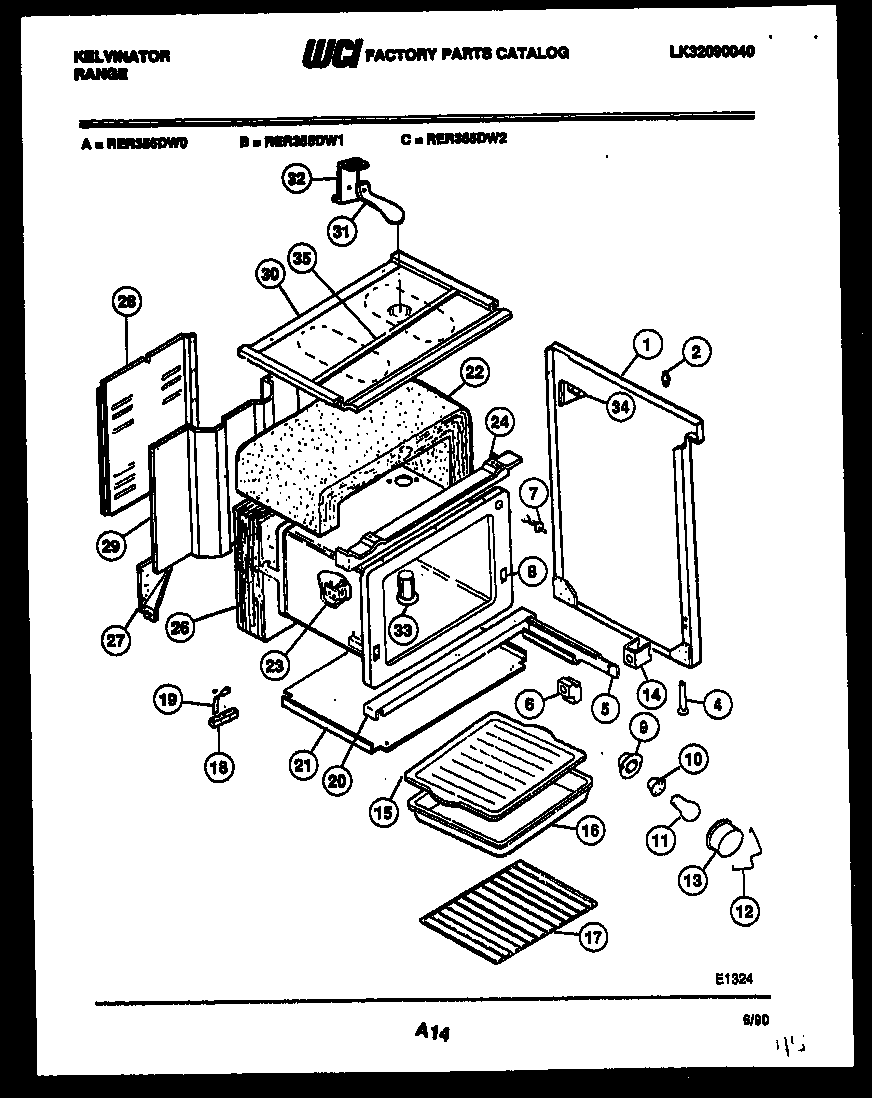

RER355DD2 04 – BODY PARTS

Products

Position	Product
1	PANEL-SIDE RH ALMD
1	SIDE PANEL LH-ALMD
2	BUMPER, COOKTOP (4)
4	LEG, LEVELLER (4)
5	WCI 5308015746
5	RAIL, DRAWER LH
6	GUIDE-DRAWER FRNT (2)
7	WCI 5301314211
8	LINER, OVEN
9	WCI 3051511
10	316116400 Frigidaire Oven Light Socket
11	316538904 Frigidaire Oven Lamp Light
12	RETAINER-LENS
13	5304524341 Frigidaire Lens
14	SPACER, DRAWER RAIL (2)
15	WCI 3205234
16	WCI 3205539
17	316067902 Frigidaire Oven Rack
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	PLATE=GROUND STRAP
20	CHANNEL – OVEN SUPPORT LOWER
21	WCI 3206275
22	INSULATION – OVEN WRAP
23	BRACKET-THERMO BULB (2)
24	WCI 3203209
26	INSULATION
27	WCI 3017481
27	WCI 3017482
28	WIRE, COVER
29	WCI 5303017535
30	WCI K005025704
31	WCI 3051655
32	BRACKET, VENT TUBE
33	TUBE-OVEN VENT
34	GUSSET – BKGRD (2)
35	WCI 08014243
