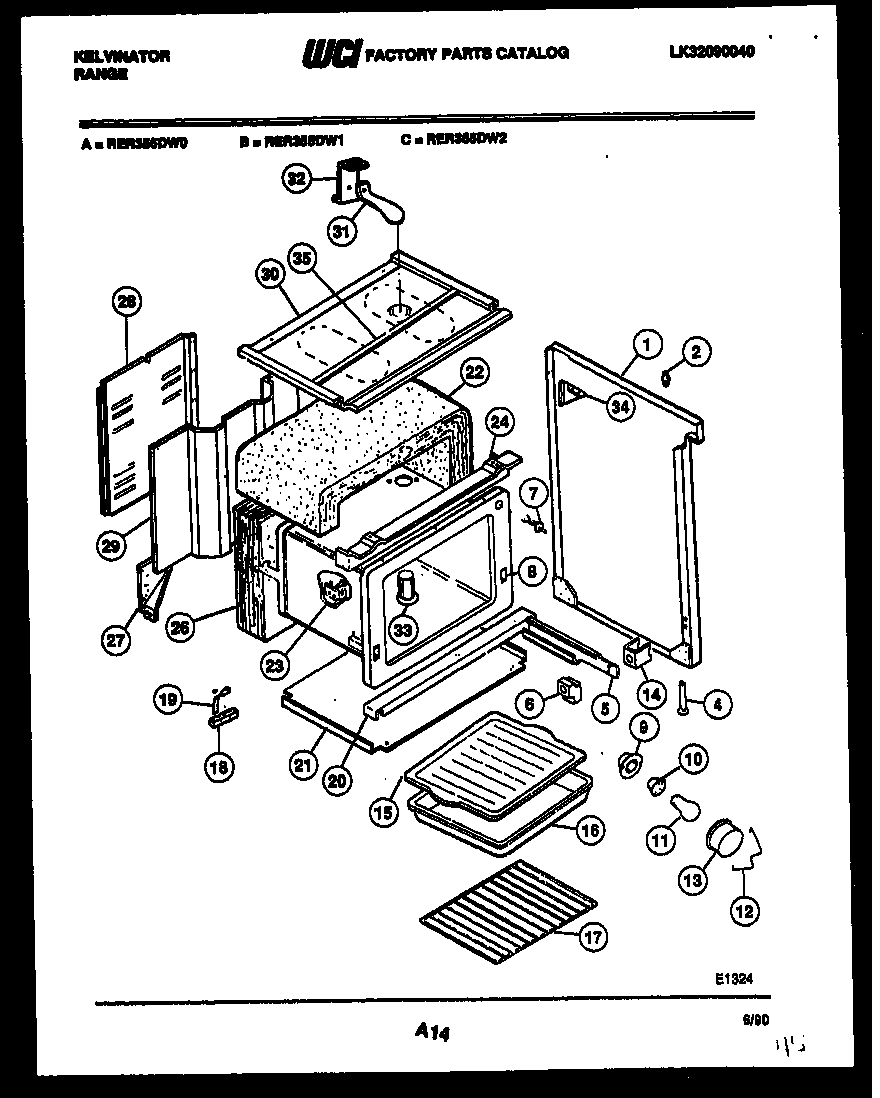

RER355DW0 04 – BODY PARTS

Products

Position	Product
1	SIDE PANEL, RH WHITE
1	SIDE PANEL, LH WHITE
2	BUMPER, COOKTOP (4)
4	SCREW-LEVELING (4)
5	WCI 5308015746
5	RAIL, DRAWER LH
6	GUIDE-DRAWER FRNT (2)
7	WCI 5301314211
8	LINER, OVEN
9	WCI 3051511
10	316116400 Frigidaire Oven Light Socket
11	316538904 Frigidaire Oven Lamp Light
12	RETAINER-LENS
13	5304524341 Frigidaire Lens
14	SPACER, DRAWER RAIL (2)
15	WCI 3203164
16	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
17	WCI K001311570
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	PLATE=GROUND STRAP
20	WCI K315108
21	PNL – BOTTOM
22	INSULATION – OVEN WRAP
23	BRACKET-THERMO BULB (2)
24	WCI K5303702
26	INSULATION
27	GUSSET REAR, LH
27	GUSSET, RH
28	COVER, WIRE
29	BACK
30	WCI K005025704
31	WCI 3051655
32	WCI K5130801
33	WCI 5301315241
34	GUSSET – BKGRD (2)
35	WCI 08014243
