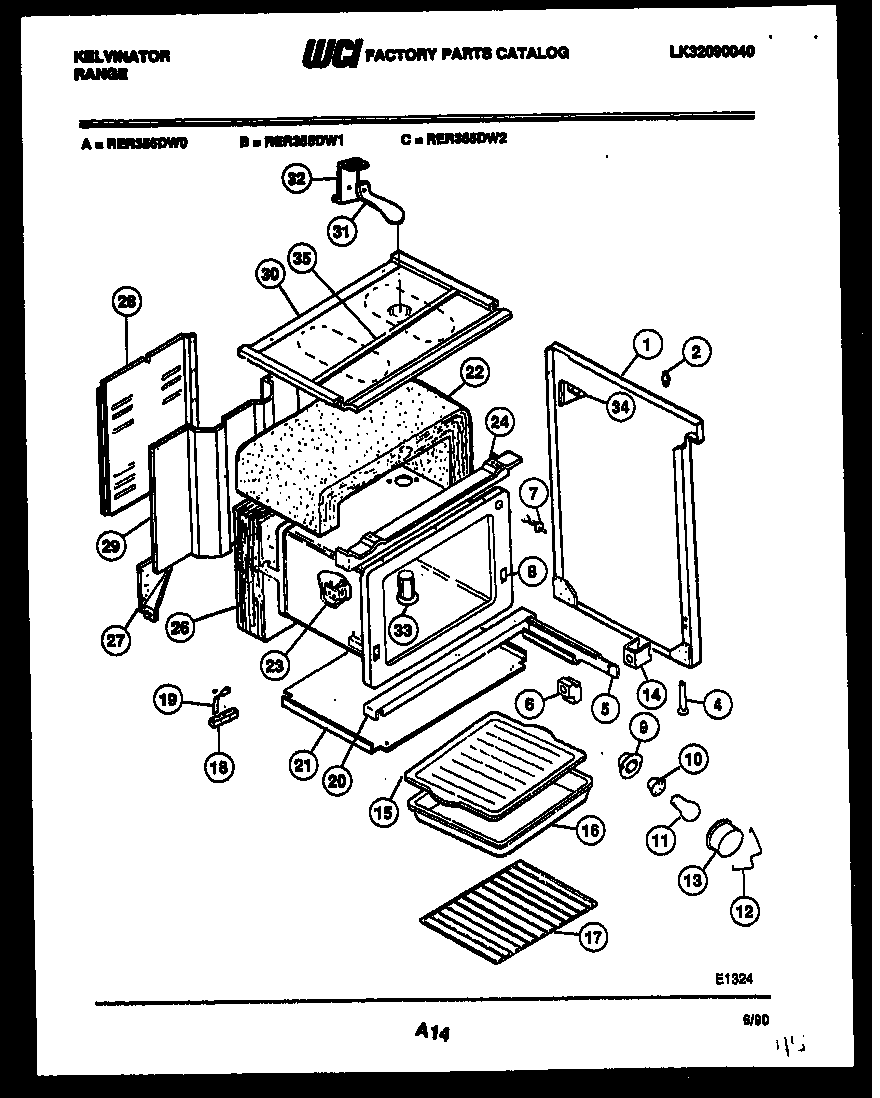

RER355DW1 04 – BODY PARTS

Products

PositionProduct
1SIDE PANEL, LH WHITE
1SIDE PANEL, RH WHITE
2BUMPER, COOKTOP (4)
4SCREW-LEVELING (4)
5WCI 5308015746
5RAIL, DRAWER LH
6GUIDE-DRAWER FRNT (2)
7WCI 5301314211
8LINER, OVEN
9WCI 3051511
10316116400 Frigidaire Oven Light Socket
11316538904 Frigidaire Oven Lamp Light
12RETAINER-LENS
135304524341 Frigidaire Lens
14SPACER, DRAWER RAIL (2)
15WCI 3203164
165304442087 Frigidaire Range Wall Oven Broil Pan and Insert
17316067902 Frigidaire Oven Rack
185304409888 Frigidaire Oven Terminal Block with Hardware
19PLATE=GROUND STRAP
21PNL – BOTTOM
22INSULATION – OVEN WRAP
23BRACKET-THERMO BULB (2)
24CHANNEL – OVEN SUPPORT LOWER
26INSULATION
27WCI 3017482
27WCI 3017481
28WIRE, COVER
29WCI 5303017535
30WCI K005025704
31WCI 3051655
32BRACKET, VENT TUBE
33WCI 5301315241
34GUSSET – BKGRD (2)
35WCI 08014243
