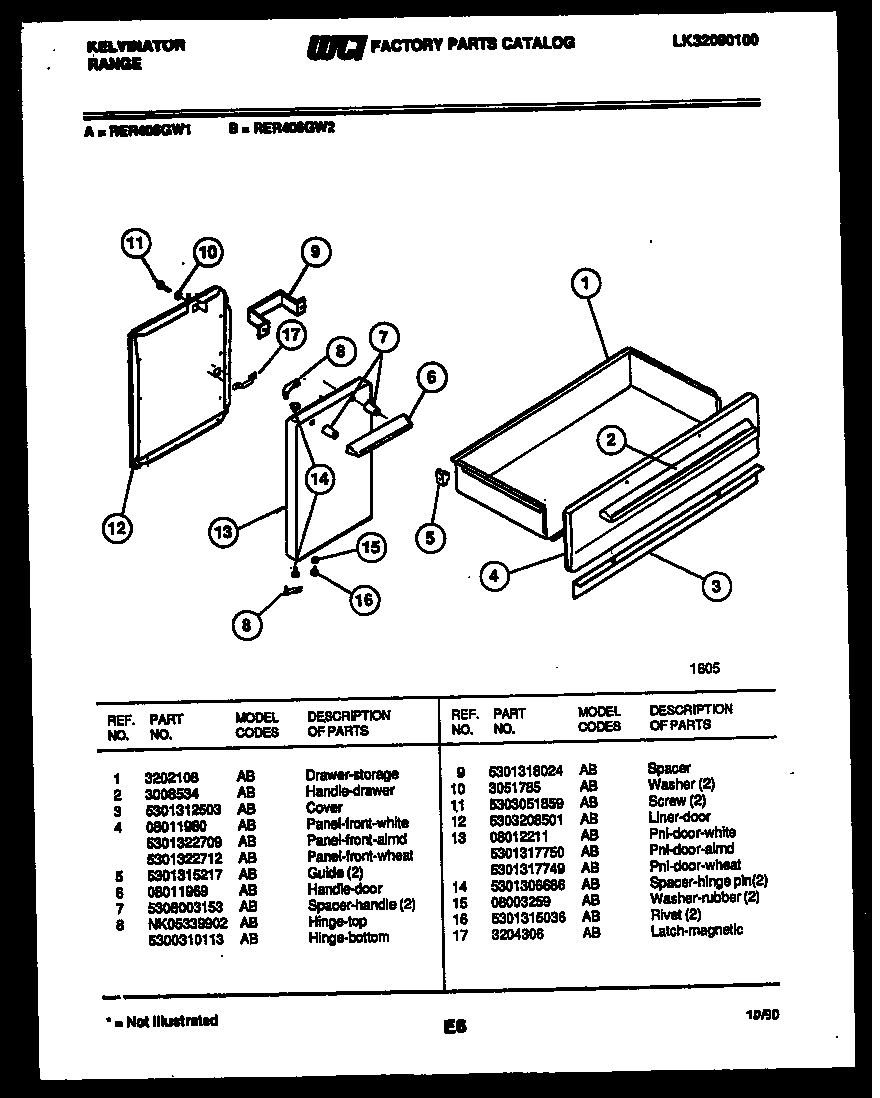

RER406GD2 03 – DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	WCI 3008534
3	COVER-TOE SPACE
4	PANEL - DRAWER (ALMD)
5	GUIDE (2)
6	HANDLE
7	SPACER (2)
8	WCI NK05339902
8A	WCI 5300310113
9	SPACER
10	WASHER-PADDED (3) (NON-ILLUSTRATED)
11	SCREW 10 X 24 (2)
12	LINER
13	PANEL COMPLETE (ALMOND)
14	SPACER-HINGE PIN (2)
15	WASHER-PADDED
16	WCI 5301315036
17	LATCH-MAGNETIC
