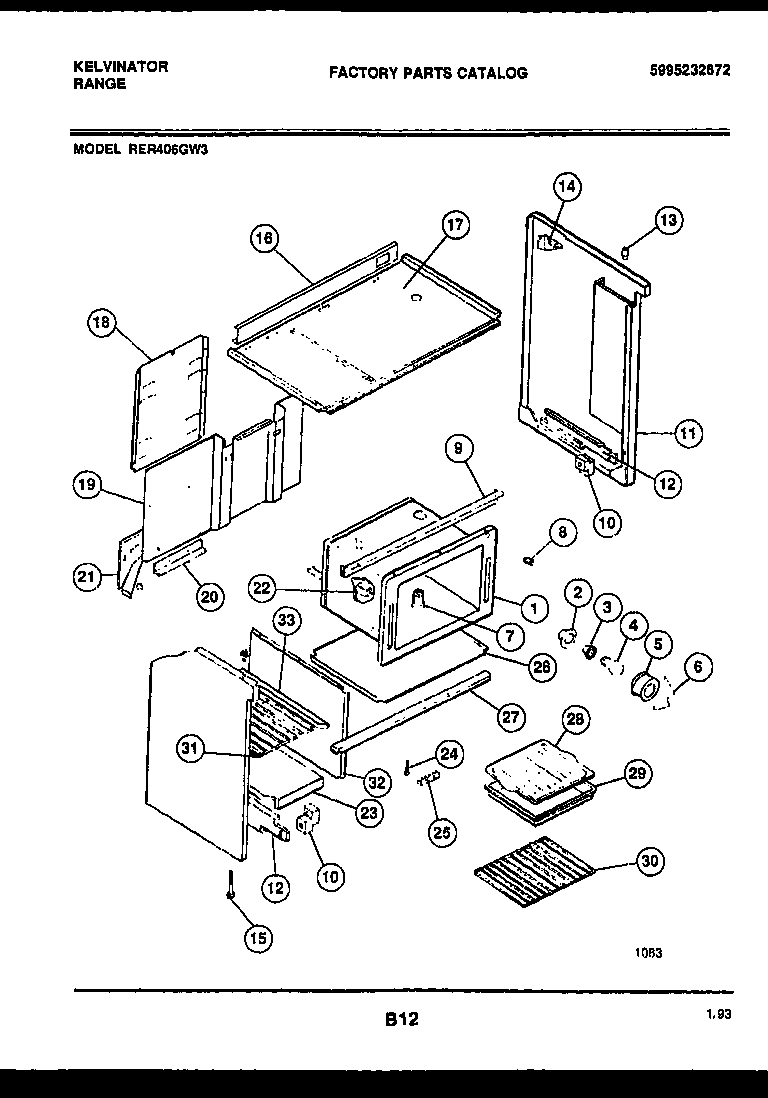

RER406GW3 06 – BODY PARTS

Products

Position	Product
*28996	WCI 3934058
*28996	WCI 3204318
1	OVEN ASSEMBLY-RIGHT
2	WCI 3051511
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	RETAINER-LENS
7	TUBE – OVEN VENT
8	WCI 5301314211
9	WCI 5303204354
10	GUIDE-DRAWER FRNT (2)
11	SIDE PANEL, RH WHITE
11B	SIDE PANEL, LH WHITE
12	WCI 5308015746
12A	RAIL, DRAWER LH
13	BUMPER, COOKTOP (4)
14	GUSSET – BKGRD (2)
15	SCREW-LEVELING (4)
16	WCI 5303209319
17	WCI 5303294355
18	WIRE, COVER
19	WCI 3204827
20	WCI 5301307085
21A	WCI 3204823
21	WCI 3204822
22A	INSULATION
22	BRACKET-THERMO BULB (2)
23	BOTTOM COMPLETE
24	PLATE=GROUND STRAP
25	5304409888 Frigidaire Oven Terminal Block with Hardware
26	WCI 3206275
27	Channel,oven support ,front
27A	INSULATION – OVEN WRAP
28	BROILER GRILL
29	BROILER PAN
30	316067902 Frigidaire Oven Rack
31	RACK – COMPLETE
32	PARTITION – CENTER
33	RAIL – COMPL RACK (2)
