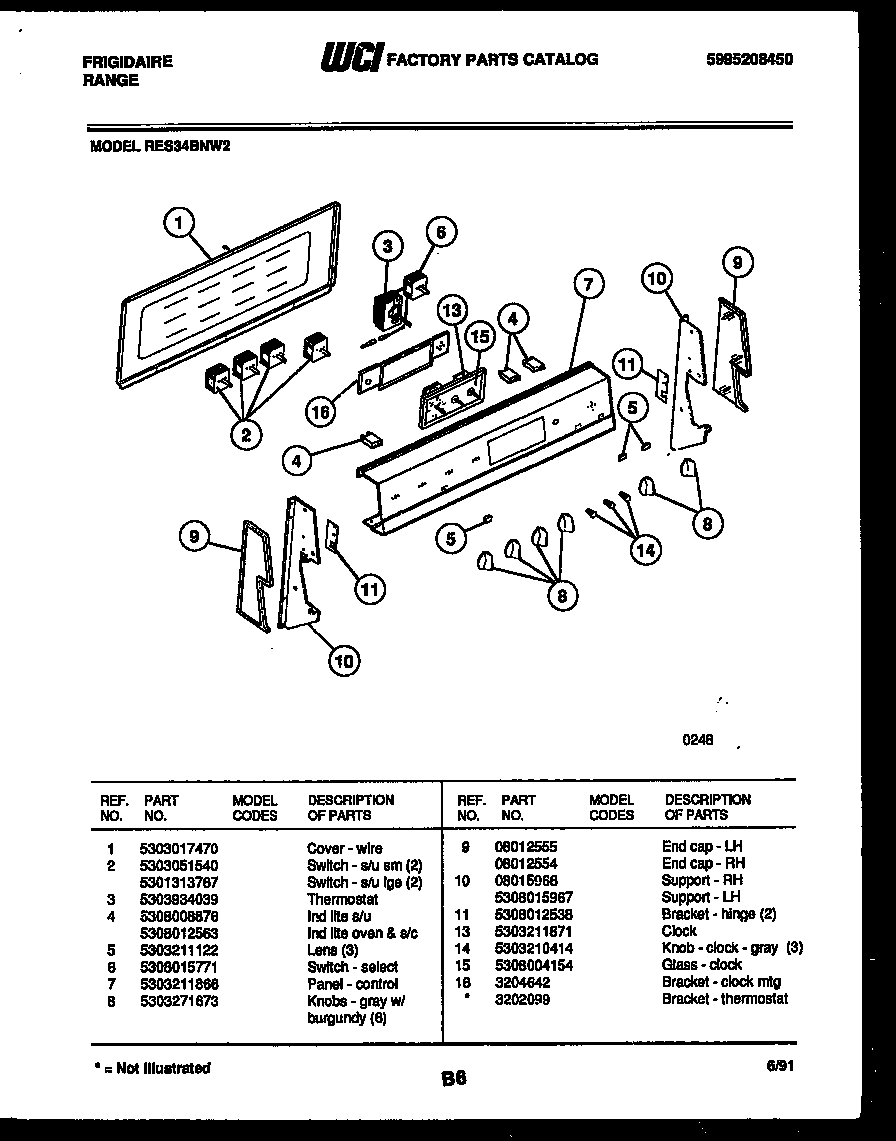

RES34BNW2 02 – CONTROL PANEL

Products

Position	Product
*47008	BRACKET-THERMOSTAT
1	COVER, WIRE.
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	INDICATOR LIGHT, OVEN
4A	LIGHT-PILOT OVEN & CLEAN
5	LENS (3)
6	WCI 5308015771
7	WCI 5303211866
8	KNOBS (6)
9A	WCI 08012554
9	WCI 08012555
10A	SUPPORT - LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
13	WCI 5303211871
14	KNOB - CLOCK (3) - GREY
15	WCI 5308004154
16	BRACKET-MTG CLOCK
