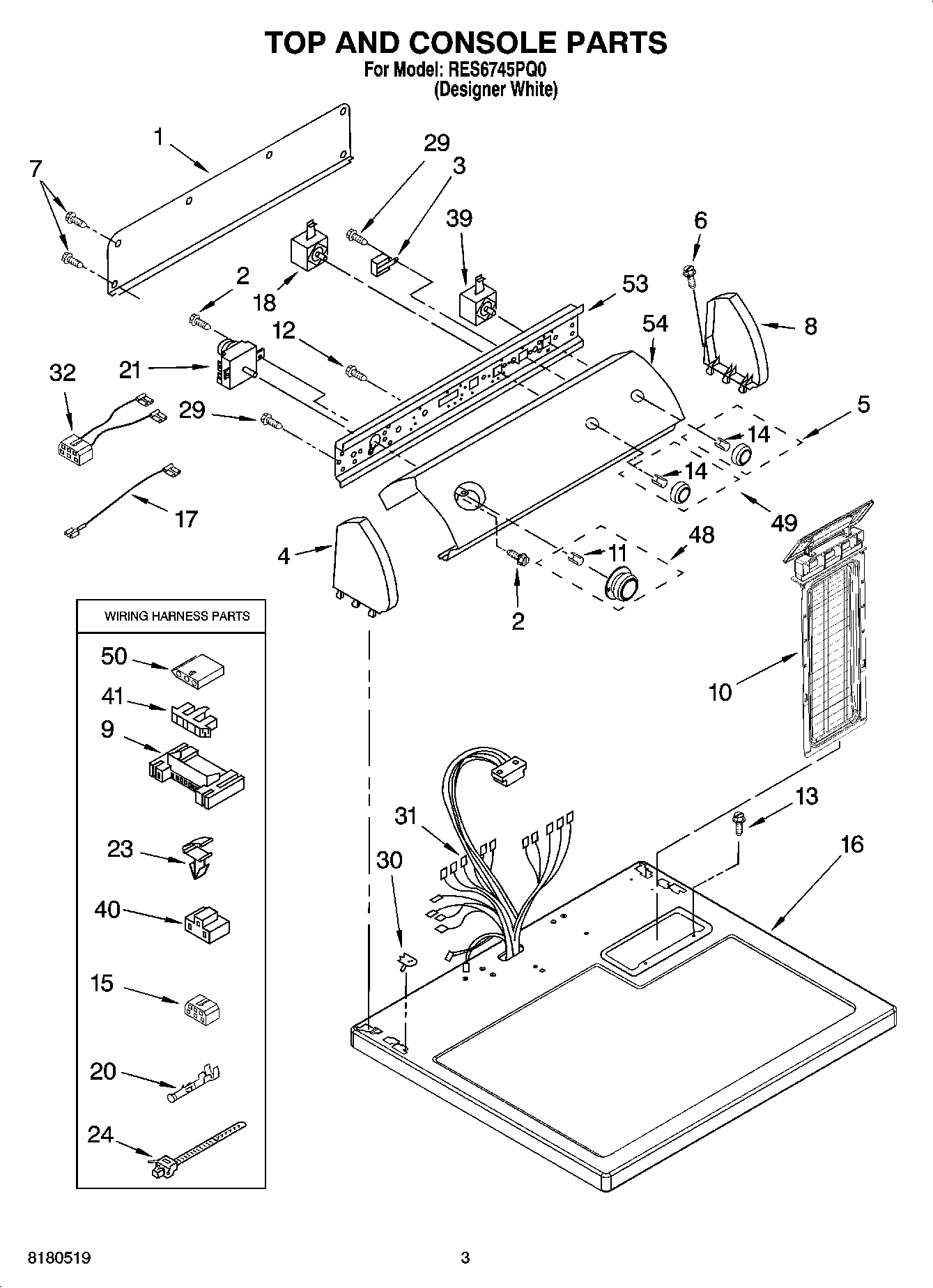

RES6745PQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	3400859 Whirlpool Screw
3	WP694419 Whirlpool Buzzer Adjuster
5	Knob, Push-To-Start
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	279960 Whirlpool Endcap Assembly
9	3395683 Whirlpool Connector
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP688805 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	WP8536939 Whirlpool Spring Clip
15	Block, Disconnect
16	Top
17	Wire, Jumper (Tan)
18	WP3399639 Whirlpool Switch
20	WP94614 Whirlpool Terminal
21	WP3979617 Whirlpool Timer
23	WP3394427 Whirlpool Clip
24	Tie, Cable
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
39	WP3398094 Whirlpool Push To Start Switch
40	3401144 Whirlpool Connector
41	Connector, Timer
48	WP8557455 Whirlpool Knob Timer
49	Knob, Control
50	3936144 Whirlpool Connector
53	Bracket, Control
54	Panel, Control
