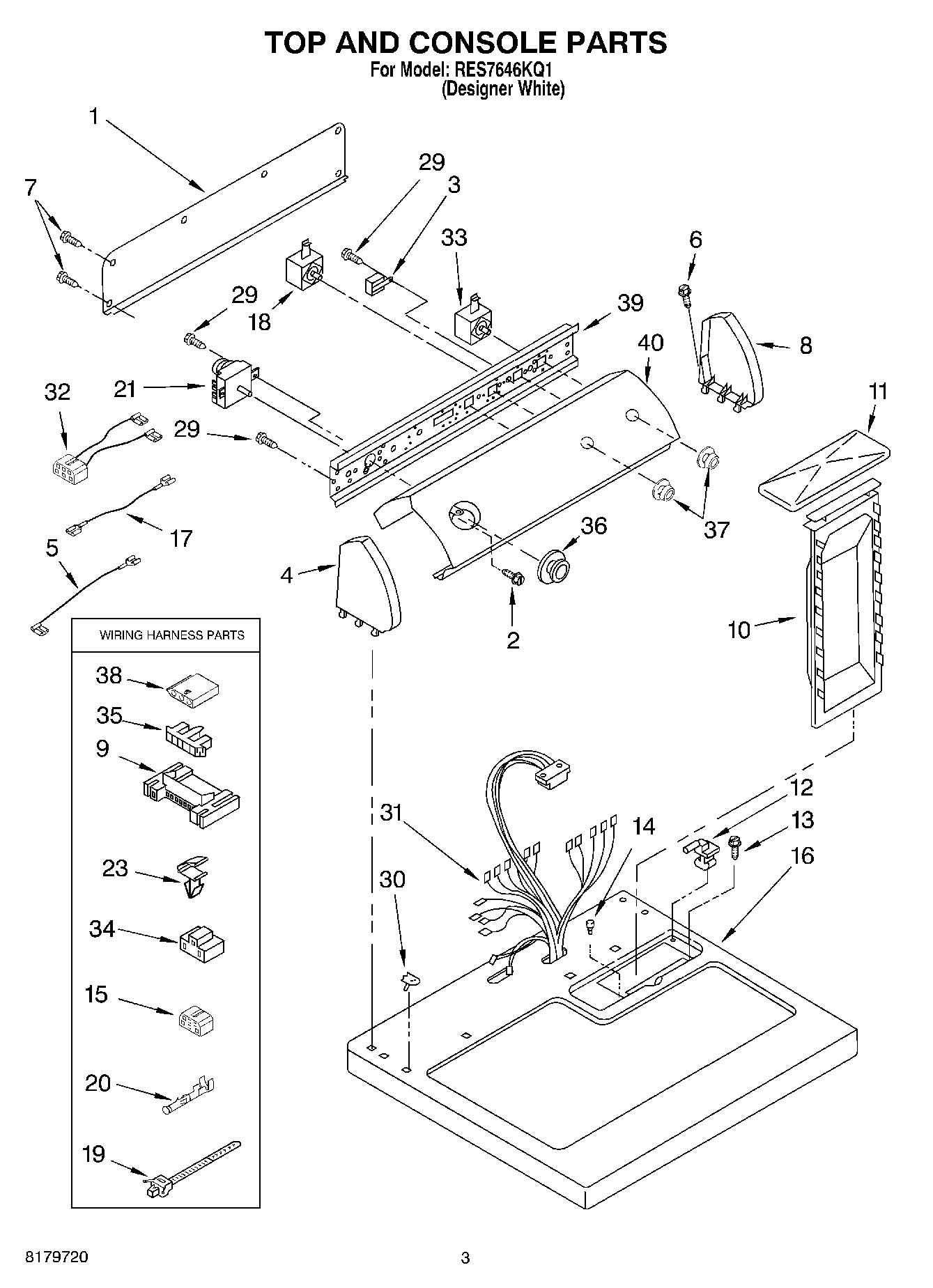

RES7646KQ1 02 – SECTION

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	3400859 Whirlpool Screw
3	WP694419 Whirlpool Buzzer Adjuster
5	Wire, Jumper (Tan)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	279960 Whirlpool Endcap Assembly
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Bumper, Lint Lid
15	Block, Disconnect
16	Top
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
19	Tie, Cable
20	WP94614 Whirlpool Terminal
21	WP3979617 Whirlpool Timer
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
33	Relay, Push To Start
34	3401144 Whirlpool Connector
35	Connector, Timer
36	Timer Knob Assembly
37	Knob, Control (2)
38	3936144 Whirlpool Connector
39	Bracket, Control
40	3404351 Whirlpool Dryer Rack
40	350930 Whirlpool White Spray Paint
40	4392065 Whirlpool Dryer Maintenance Kit
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350938 Whirlpool Spray Gun
40	Panel, Control
