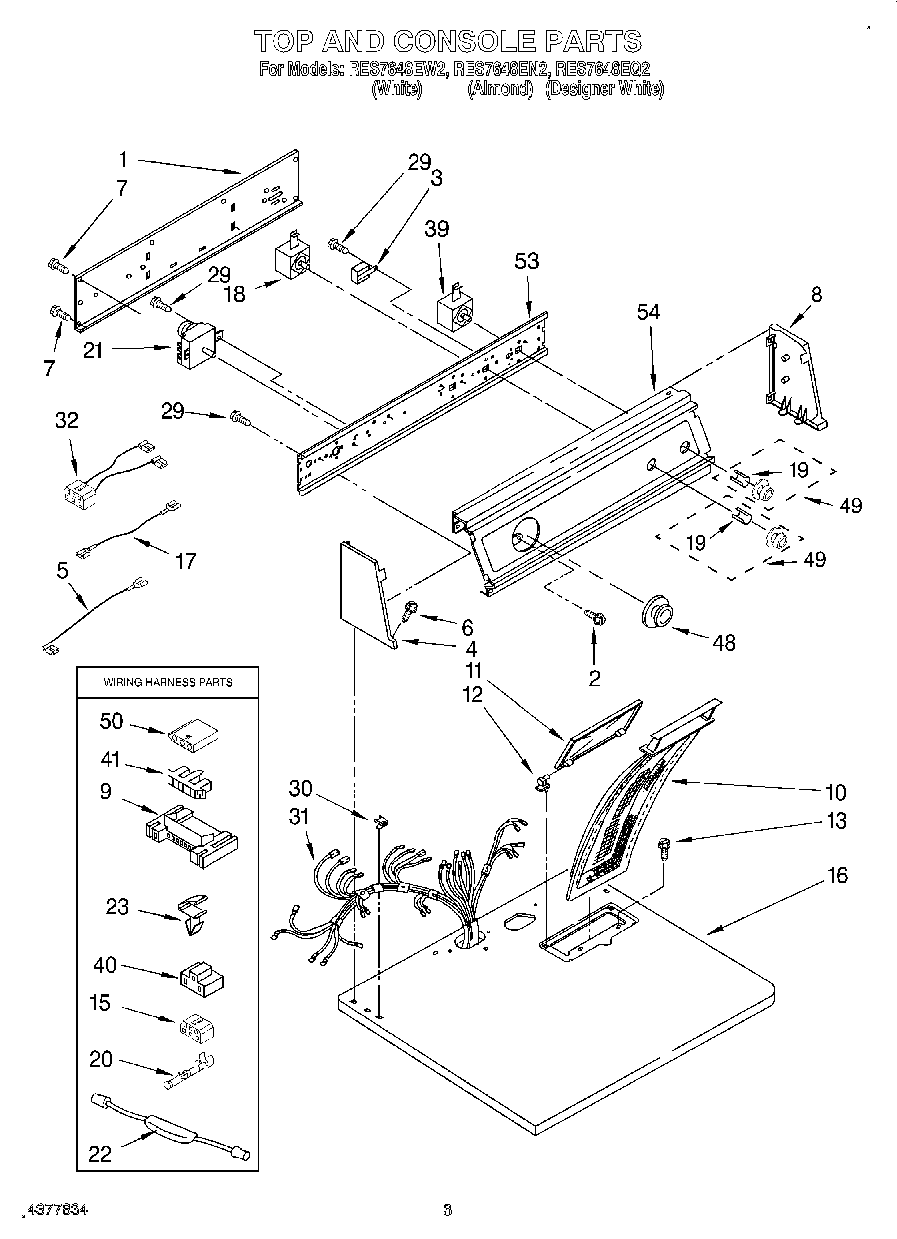

RES7648EN2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3397618
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3406075
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT3406692
1	Panel, Rear Console
2	3400859 Whirlpool Screw
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Black)
5	Wire, Jumper (Tan)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.) (Black)
8	Cap, End (R.H.) (White)
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	Block, Disconnect
16	Top (Almond)
16	Top (White)
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
19	WP688805 Whirlpool Spring Clip
20	WP94614 Whirlpool Terminal
21	WP3976574 Whirlpool Timer
22	279872 Whirlpool Resistor
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
39	Relay, Push To Start
40	3401144 Whirlpool Connector
41	Connector, Timer
48	Timer Knob Assembly (White)
48	Timer Knob Assembly (Black)
49	Knob, Control (Black)
49	Knob, Control (White)
50	3936144 Whirlpool Connector
53	Bracket, Control
54	Panel, Control (Black)
54	Panel, Control (White)
