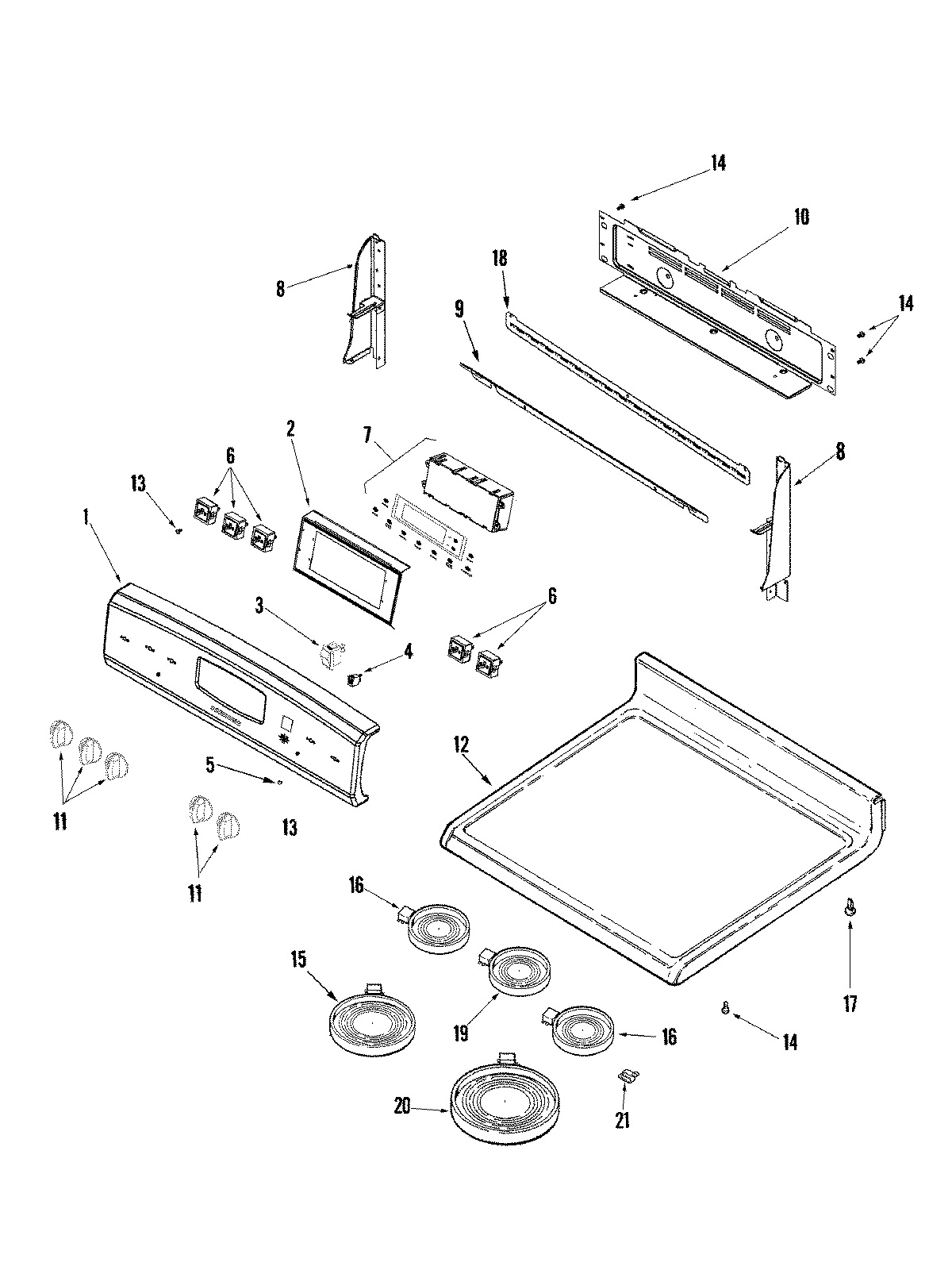

RESF5330DT 02 – CONTROL PANEL/TOP ASSEMBLY

RESF5330DT 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

RESF5330DT 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010278
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6MAY 74006589
7MAY 74010263
8WP74003976 Whirlpool Screw
8WP98008545 Whirlpool Screw
8MAY 74010202
8MAY 74010201
9MAY 74009701
10MAY 74009943
11MAY 74010247
12MAY 74010265
13SCREW
14SCREW (6ABX.25-ZN)
15MAY 74008569
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009978
19MAY 74008898
20MAY 74009082
21MAY 74007845
