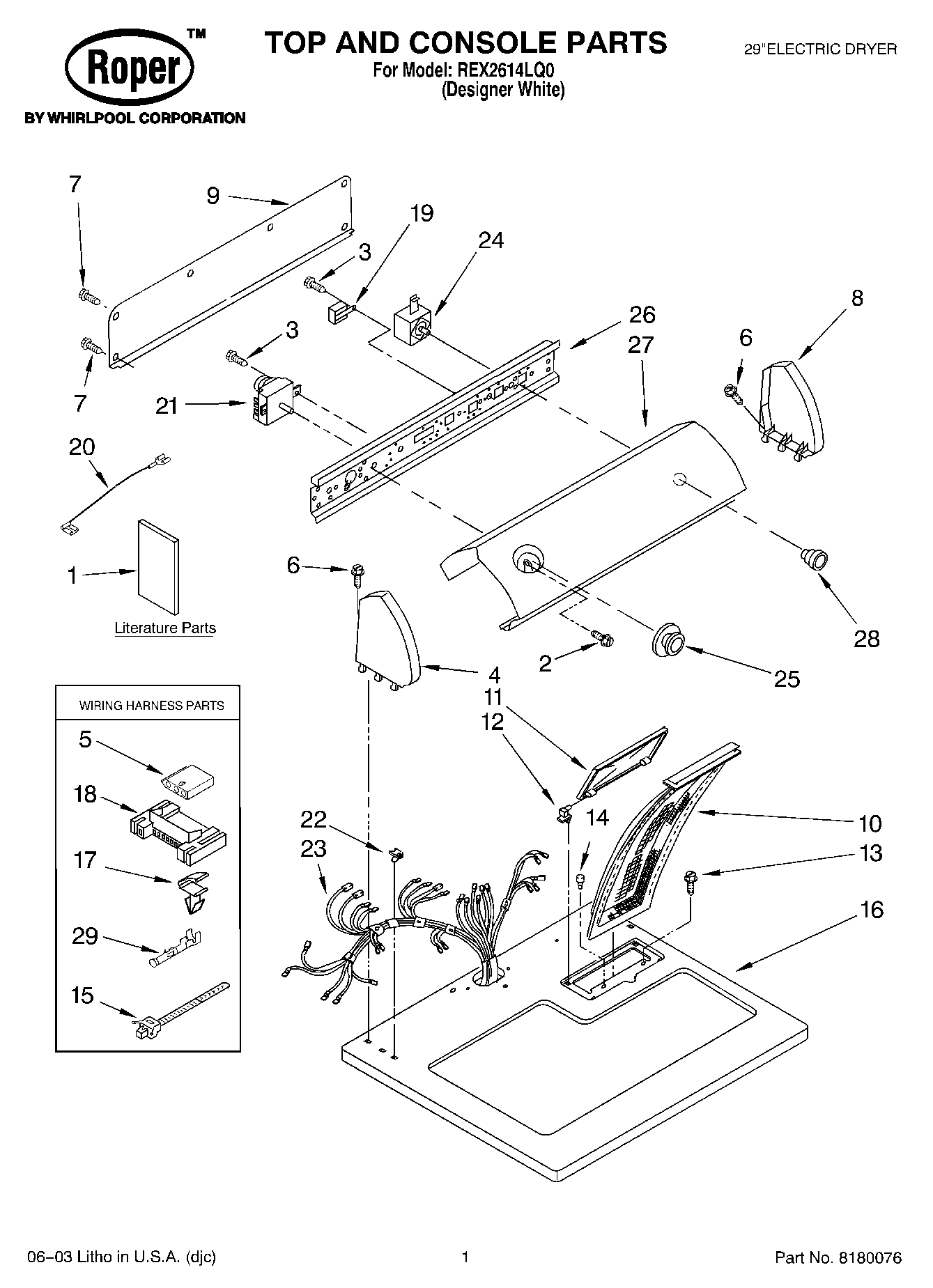

REX2614LQ0 01 – TOP AND CONSOLE PARTS

REX2614LQ0 01 – TOP AND CONSOLE PARTS

Written by

in

REX2614LQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Label, Wiring Diagram)
1Dryer
1WPL LIT3397618
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Guide, Use & Care)
23400859 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15Tie, Cable
16Top
17WP3394427 Whirlpool Clip
183395683 Whirlpool Connector
19WP694419 Whirlpool Buzzer Adjuster
20Wire, Jumper (Black)
20Wire, Jumper (Blue)
21WP8299780 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
25Timer Knob Assembly
26Bracket, Control
27Panel, Control
28WP3957800 Whirlpool Knob
29WP689790 Whirlpool Dryer Rack
29ACCESSORY PARTS
29350938 Whirlpool Spray Gun
2972017 Whirlpool Appliance Touch-Up Paint White
29799344 Whirlpool Refrigerator Paint
29350930 Whirlpool White Spray Paint
294392065 Whirlpool Dryer Maintenance Kit
29W11224254 Whirlpool Test Kit
29WP94614 Whirlpool Terminal
