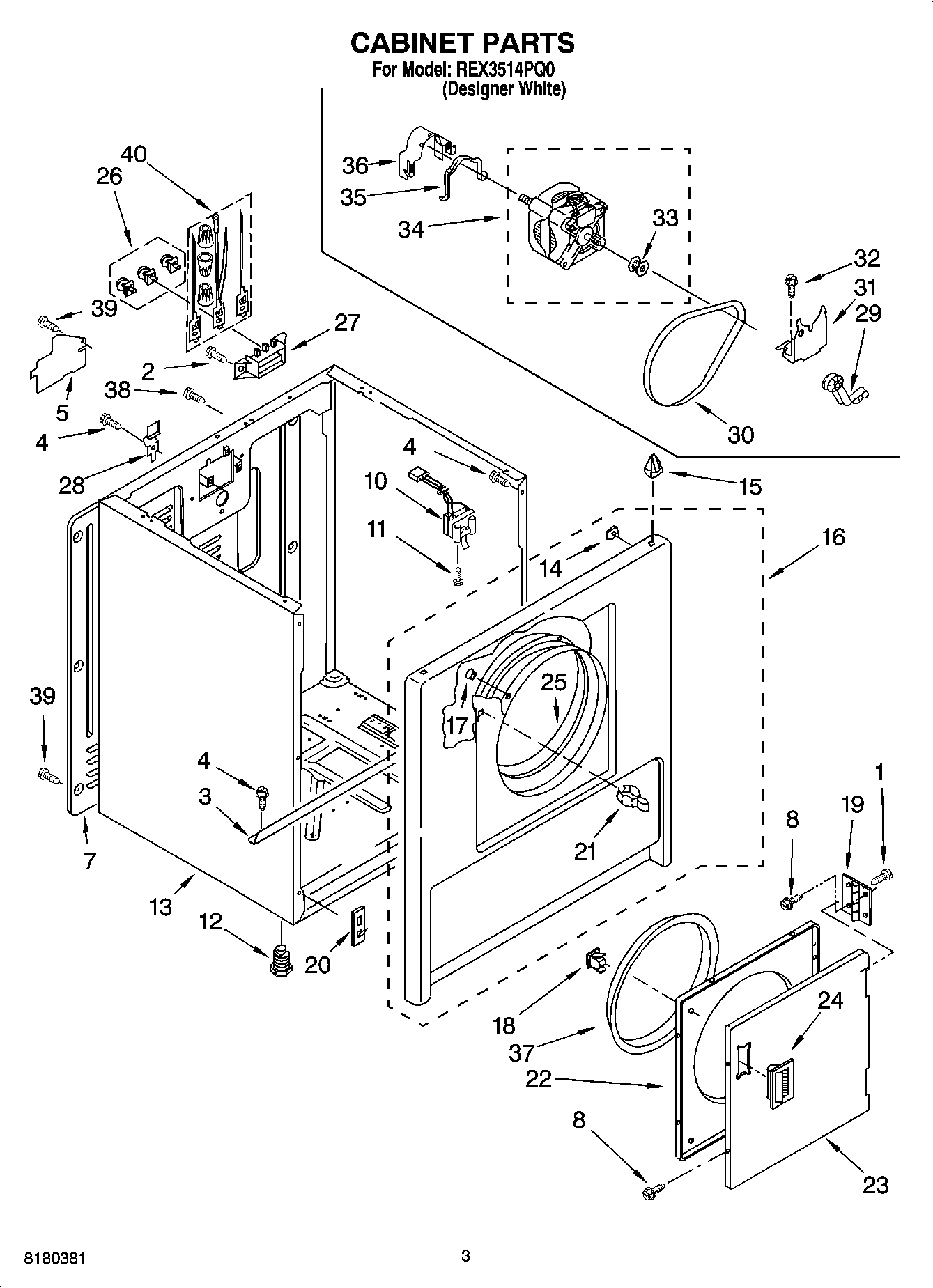

REX3514PQ0 02 – CABINET PARTS

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
2	WP308685 Whirlpool Microwave Screw
3	Bracket, Cabinet
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
7	280040 Whirlpool Rear Panel
8	WP694091 Whirlpool Screw
10	WP3406102 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	49621 Whirlpool Leveling Feet
13	8533643 Whirlpool Dryer White Cabinet
14	WP98234 Whirlpool Nut
15	WP18776 Whirlpool Lock
16	Front Panel (White)
17	279220 Whirlpool Clip
18	WP3389441 Whirlpool Door Catch
19	WP348023 Whirlpool Hinge
20	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
21	279570 Whirlpool Dryer Door Latch Kit
22	280077 Whirlpool Door
23	WP348205 Whirlpool Door
24	WP686711 Whirlpool Door Handle
25	279264 Whirlpool Bearing and Seal Kit
26	279393 Whirlpool Terminal Block Screw and Nut Kit
27	WP3397659 Whirlpool Terminal Block
28	WP8066217 Whirlpool Hinge
29	WP691366 Whirlpool Dryer Idler Pulley Assembly
30	341241 Whirlpool Dryer Drum Belt
31	WP348780 Whirlpool Base
32	3400500 Whirlpool Screw
33	WP8066184 Whirlpool Dryer Motor Pulley
34	279827 Whirlpool Dryer Drive Motor
35	WP660658 Whirlpool Clamp
36	WP3404162 Whirlpool Clamp
37	W11613302 Whirlpool Door Seal
38	W10850756 Whirlpool Screw
39	WP693995 Whirlpool Screw
40	279318 Whirlpool Terminal
