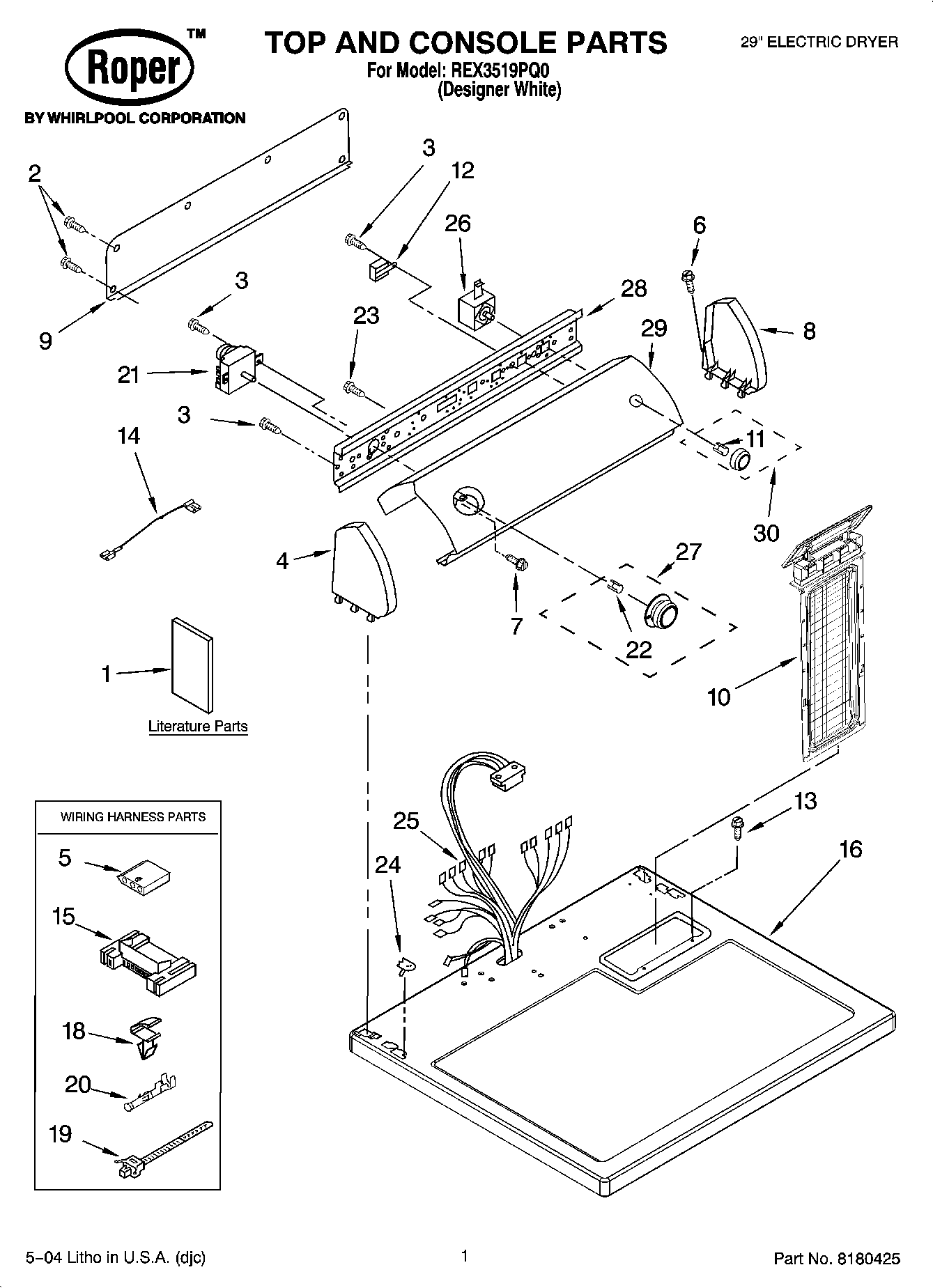

REX3519PQ0 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	Guide, Use & Care
1	Sheet, Cycle Feature
1	WPL 677818
1	Wiring Diagram
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	279960 Whirlpool Endcap Assembly
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP694419 Whirlpool Buzzer Adjuster
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Blue)
14	Wire, Jumper (Black)
15	3395683 Whirlpool Connector
16	Top
18	WP3394427 Whirlpool Clip
19	Tie, Cable
20	WP94614 Whirlpool Terminal
21	WP8299780 Whirlpool Timer
22	WP688805 Whirlpool Spring Clip
23	WP90767 Whirlpool Screw
24	WP357213 Whirlpool Hinge Stopper
25	Harness, Wiring
26	WP3977456 Whirlpool Start Switch
27	WP8557455 Whirlpool Knob Timer
28	Bracket, Control
29	Panel, Control
30	799344 Whirlpool Refrigerator Paint
30	Knob, Push-To-Start
30	350938 Whirlpool Spray Gun
30	72017 Whirlpool Appliance Touch-Up Paint White
30	4392065 Whirlpool Dryer Maintenance Kit
30	WP689790 Whirlpool Dryer Rack
30	350930 Whirlpool White Spray Paint
30	W11224254 Whirlpool Test Kit
30	ACCESSORY PARTS

No products found
