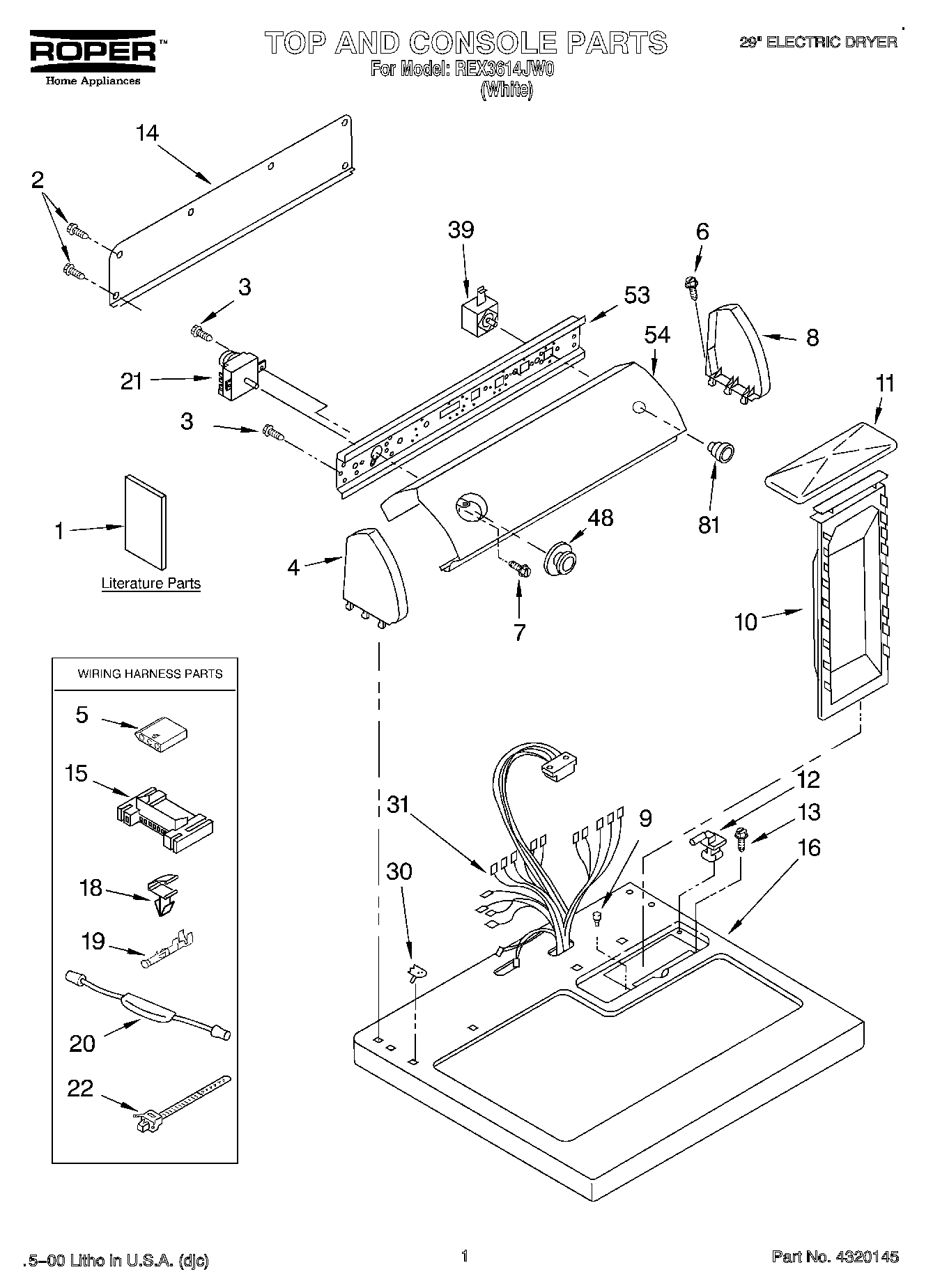

| 1 | Label, Wiring Diagram |
| 1 | WPL LIT3397618 |
| 1 | Literature Parts (Guide, Use & Care) |
| 2 | WP693995 Whirlpool Screw |
| 3 | WPW10139210 Whirlpool Screw |
| 4 | Cap, End (L.H.) |
| 5 | 3936144 Whirlpool Connector |
| 6 | WP388326 Whirlpool Screw |
| 7 | 3400859 Whirlpool Screw |
| 8 | Cap, End (R.H.) |
| 9 | Bumper, Lint Lid |
| 10 | 339392V Whirlpool Dryer Lint Filter Screen |
| 11 | Cover, Lint Screen |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | W10103406 Whirlpool Rear Panel |
| 15 | 3395683 Whirlpool Connector |
| 16 | Top |
| 18 | WP3394427 Whirlpool Clip |
| 19 | WP94614 Whirlpool Terminal |
| 20 | 279872 Whirlpool Resistor |
| 21 | Timer |
| 22 | Tie, Cable |
| 30 | WP357213 Whirlpool Hinge Stopper |
| 31 | Harness, Wiring |
| 39 | WP3395382 Whirlpool Push To Start Switch |
| 48 | Timer Knob Assembly |
| 53 | Bracket, Control |
| 54 | Panel, Control |
| 81 | WP3352875 Whirlpool Knob |
| 81 | Almond (Uncut) |
| 81 | WP72107 Whirlpool Touchup |
| 81 | 799344 Whirlpool Refrigerator Paint |
| 81 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 81 | 350956 Whirlpool Spray Assembly |
| 81 | 350938 Whirlpool Spray Gun |
| 81 | 350930 Whirlpool White Spray Paint |
