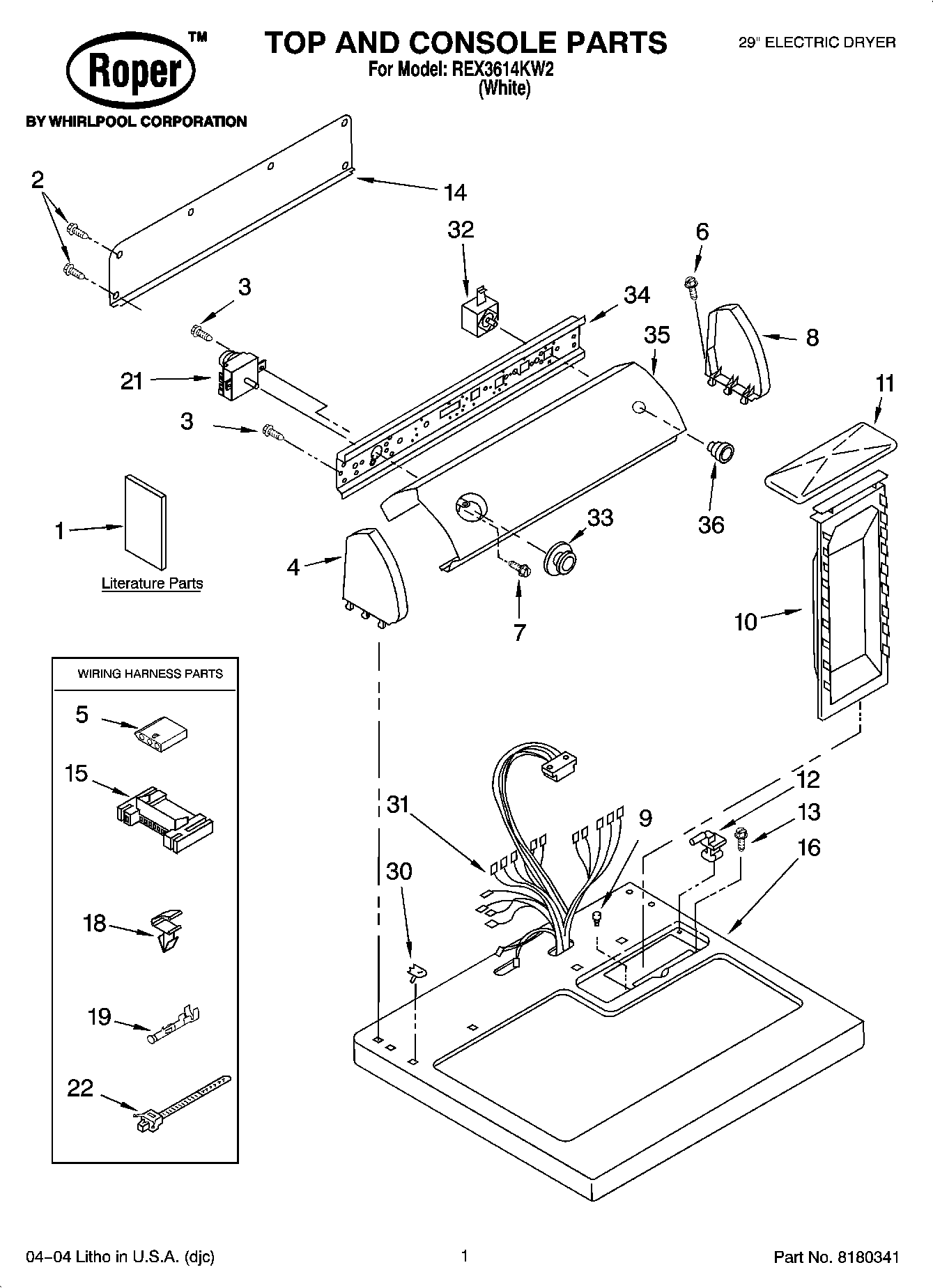

REX3614KW2 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Guide, Use & Care)
1	WPL LIT3397618
1	Literature Parts (Label, Wiring Diagram)
1	Dryer
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	Cap, End (R.H.)
9	Bumper, Lint Lid
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	W10103406 Whirlpool Rear Panel
15	3395683 Whirlpool Connector
16	Top
18	WP3394427 Whirlpool Clip
19	WP94614 Whirlpool Terminal
21	WP8299780 Whirlpool Timer
22	Tie, Cable
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3977456 Whirlpool Start Switch
33	Timer Knob Assembly
34	Bracket, Control
35	Panel, Control
36	ACCESSORY PARTS
36	350938 Whirlpool Spray Gun
36	72017 Whirlpool Appliance Touch-Up Paint White
36	WP689790 Whirlpool Dryer Rack
36	WP3352875 Whirlpool Knob
36	799344 Whirlpool Refrigerator Paint
36	4392065 Whirlpool Dryer Maintenance Kit
36	W11224254 Whirlpool Test Kit
36	350930 Whirlpool White Spray Paint
