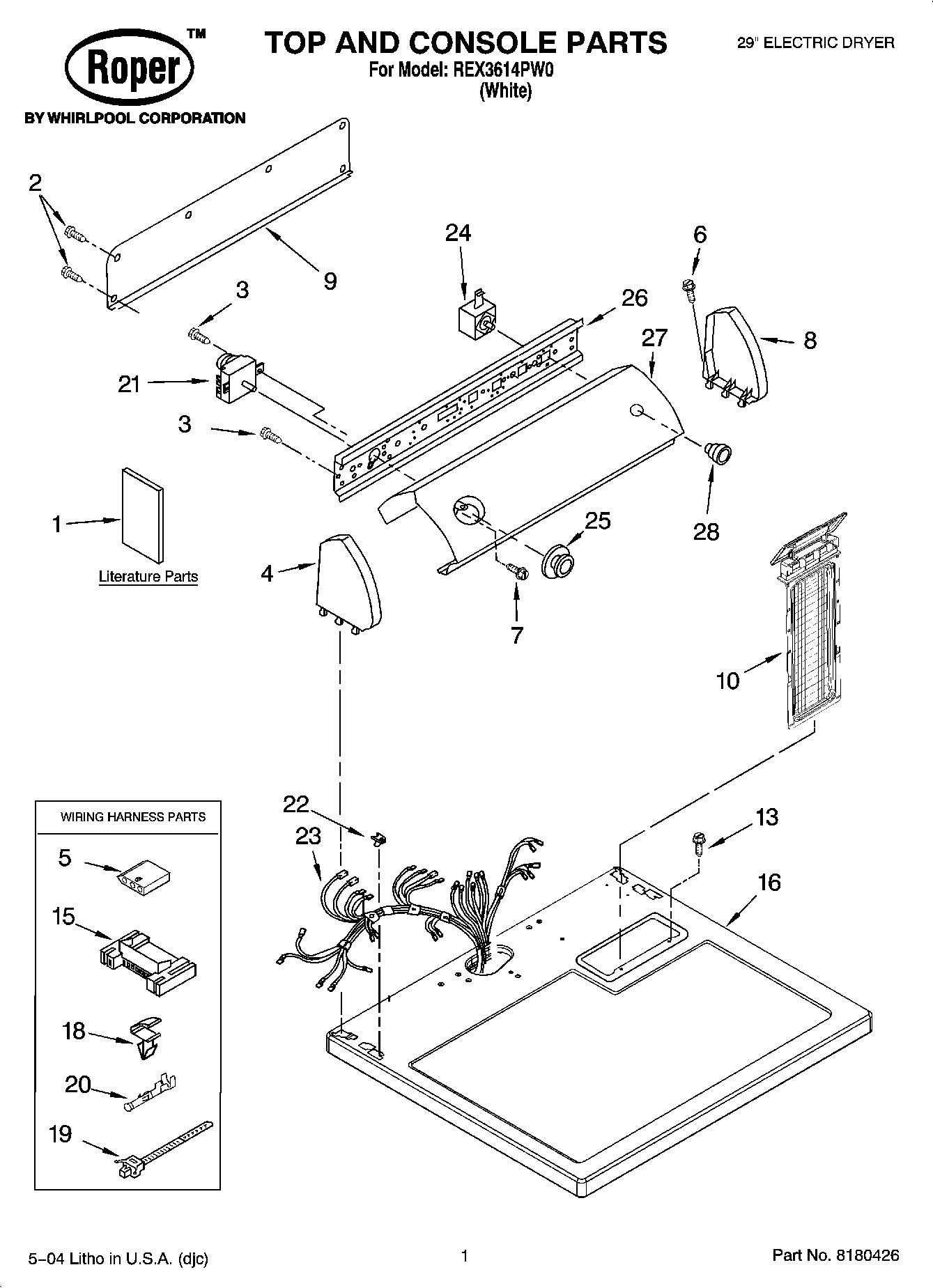

REX3614PW0 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	Guide, Use & Care
1	Sheet, Cycle Feature
1	Instructions, Installation
1	Wiring Diagram
1	WPL 677818
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	Cap, End (R.H.)
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
15	3395683 Whirlpool Connector
16	Top
18	WP3394427 Whirlpool Clip
19	Tie, Cable
20	WP94614 Whirlpool Terminal
21	WP8299780 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	Harness, Wiring
24	WP3977456 Whirlpool Start Switch
25	Timer Knob Assembly
26	Bracket, Control
27	Panel, Control
28	WP3352875 Whirlpool Knob
28	WP689790 Whirlpool Dryer Rack
28	350930 Whirlpool White Spray Paint
28	W11224254 Whirlpool Test Kit
28	4392065 Whirlpool Dryer Maintenance Kit
28	799344 Whirlpool Refrigerator Paint
28	72017 Whirlpool Appliance Touch-Up Paint White
28	350938 Whirlpool Spray Gun
