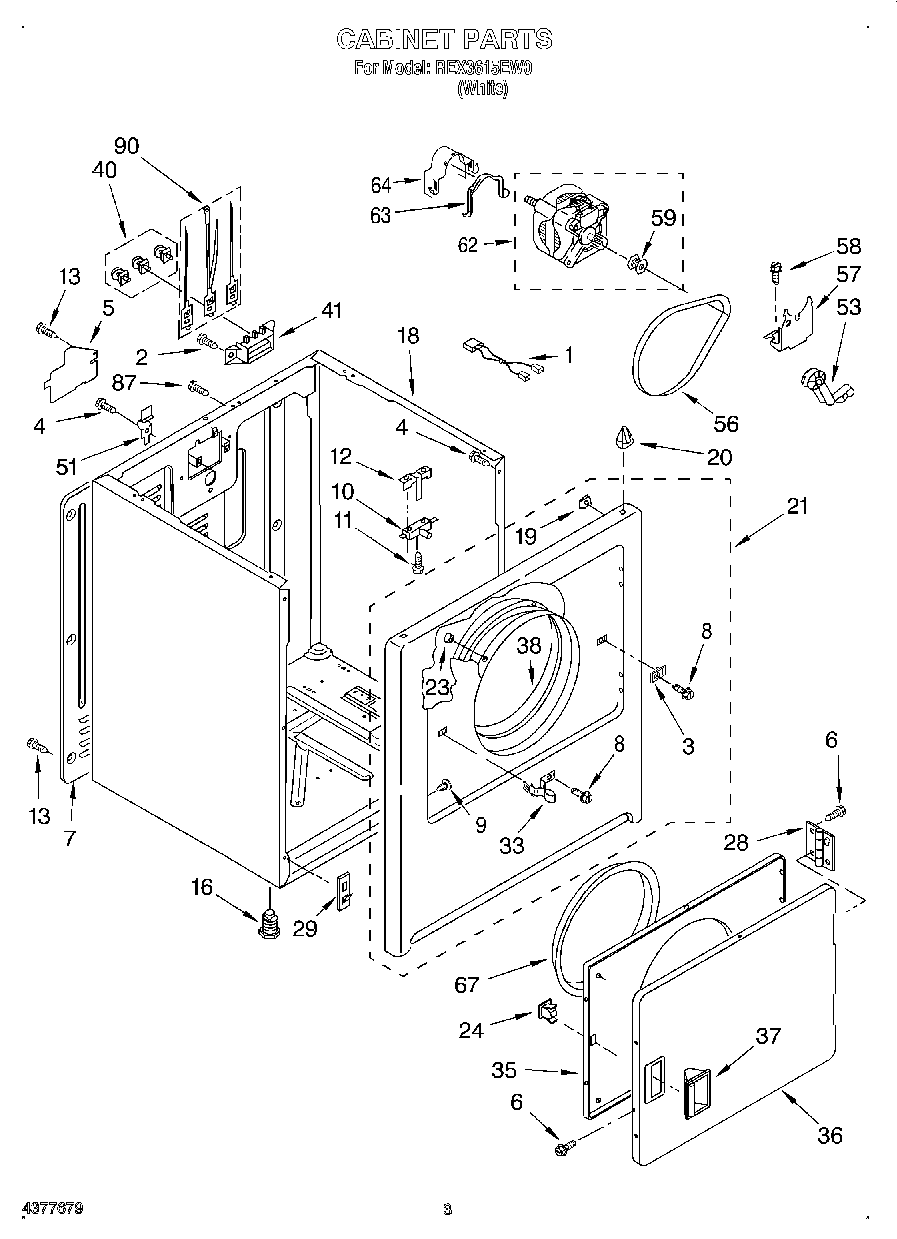

REX3615EW0 02 – SECTION

Products

PositionProduct
1WP3406105 Whirlpool Door Switch
2WP308685 Whirlpool Microwave Screw
3WP3403630 Whirlpool Plug
4SCREW
5W11539855 Whirlpool Refrigerator Pump
6WP694091 Whirlpool Screw
7280040 Whirlpool Rear Panel
8WP488627 Whirlpool Refrigerator Screw
9WP3404413 Whirlpool Plug
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
12WP691581 Whirlpool Actuator
13WP693995 Whirlpool Screw
1649621 Whirlpool Leveling Feet
18Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel Front Assembly
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
28WPW10362431 Whirlpool Hinge Assembly
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33W11429589 Whirlpool Strike
35Door, Rear
36WP3403361 Whirlpool Door
37WP3405184 Whirlpool White Door Handle
38279264 Whirlpool Bearing and Seal Kit
40279393 Whirlpool Terminal Block Screw and Nut Kit
41WP3397659 Whirlpool Terminal Block
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
67WP3390733 Whirlpool Door Seal Assembly
87W10850756 Whirlpool Screw
90279318 Whirlpool Terminal
