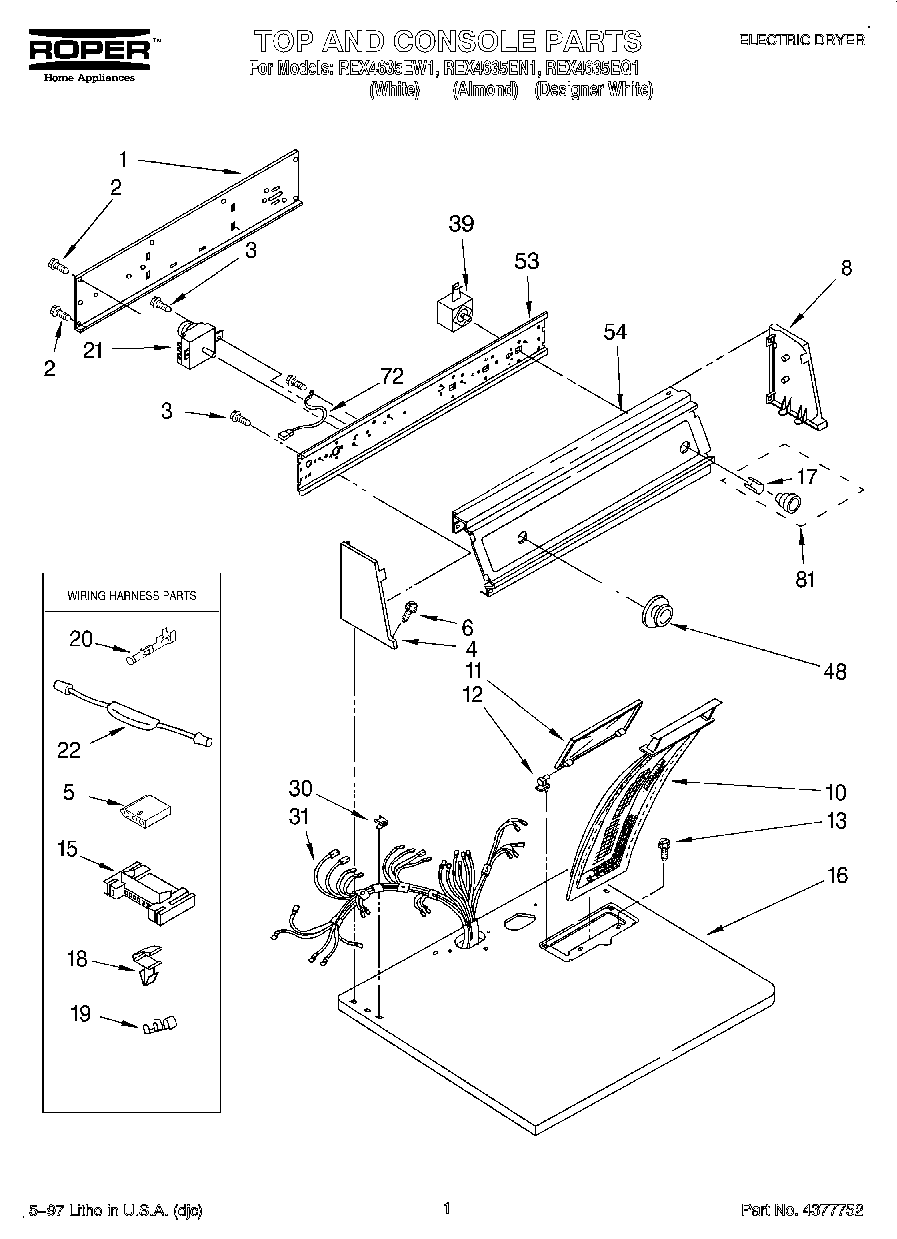

REX4635EW1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Label, Warning
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3397618
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT3406075
	Instructions, Door Reversing
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Black)
5	Connector (Door Switch)
6	WP388326 Whirlpool Screw
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Black)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	3395683 Whirlpool Connector
16	Top (White)
16	Top (Almond)
17	WP688805 Whirlpool Spring Clip
18	WP3394427 Whirlpool Clip
19	W10113937 Whirlpool Clamp
20	WP94614 Whirlpool Terminal
21	Timer, 60 Hz.
22	279872 Whirlpool Resistor
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
48	For Model REX4635EQ1
53	Bracket, Control
54	For Model REX4635EQ1
54	Panel, Control
72	Wire, Ground
81	WP3957800 Whirlpool Knob
81	WP3352875 Whirlpool Knob
