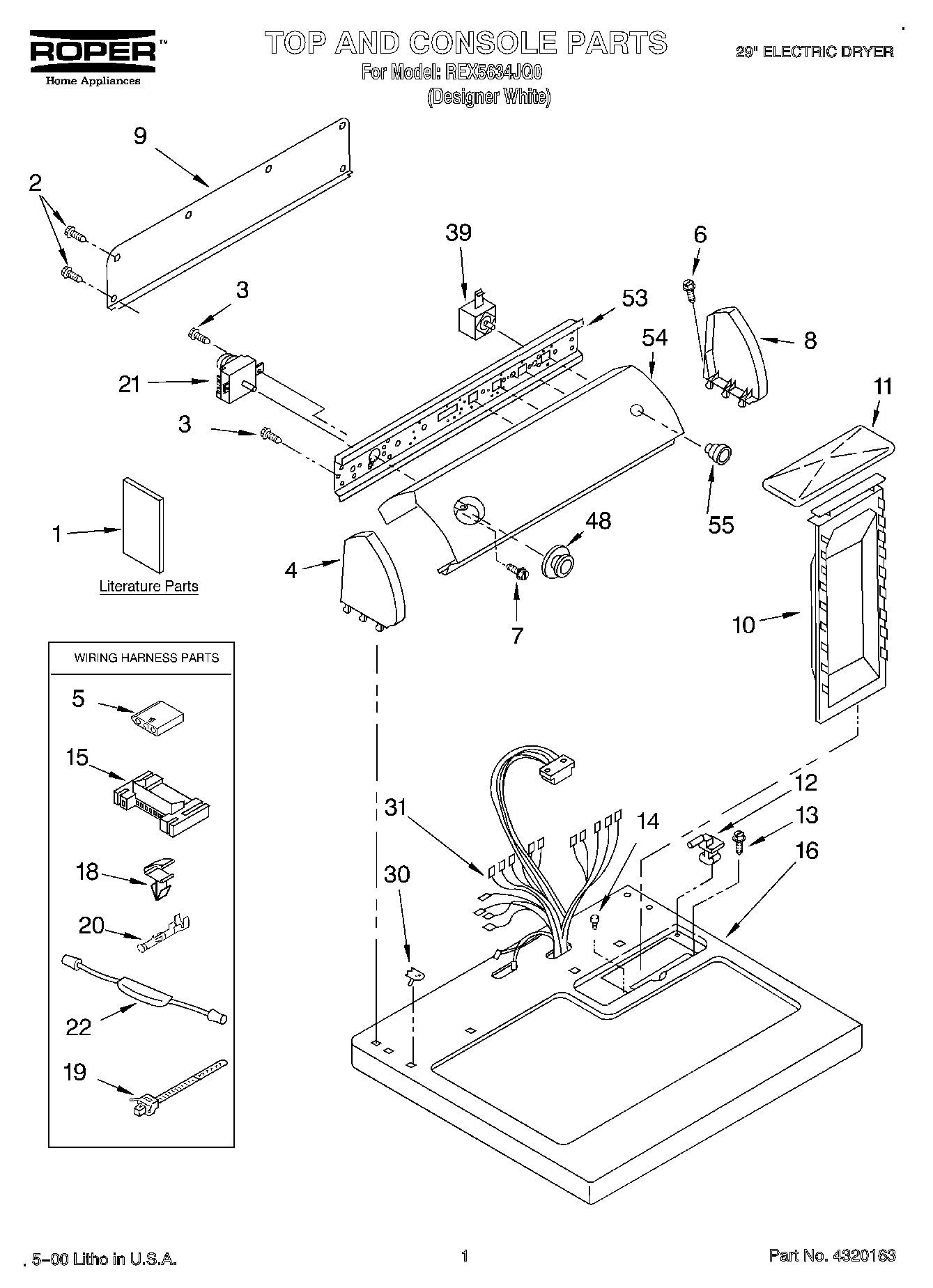

REX5634JQ0 01 – SECTION

REX5634JQ0 01 – SECTION

Written by

in

REX5634JQ0 01 – SECTION

Products

PositionProduct
1Label, Wiring Diagram
1Literature Parts (Guide, Use & Care)
1WPL LIT3397618
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
153395683 Whirlpool Connector
16Top
18WP3394427 Whirlpool Clip
19Tie, Cable
20WP94614 Whirlpool Terminal
21WP8299764 Whirlpool Timer
22279872 Whirlpool Resistor
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
55WP3957800 Whirlpool Knob
55Almond (Uncut)
55WP72107 Whirlpool Touchup
55799344 Whirlpool Refrigerator Paint
5572017 Whirlpool Appliance Touch-Up Paint White
55350956 Whirlpool Spray Assembly
55350938 Whirlpool Spray Gun
55350930 Whirlpool White Spray Paint
