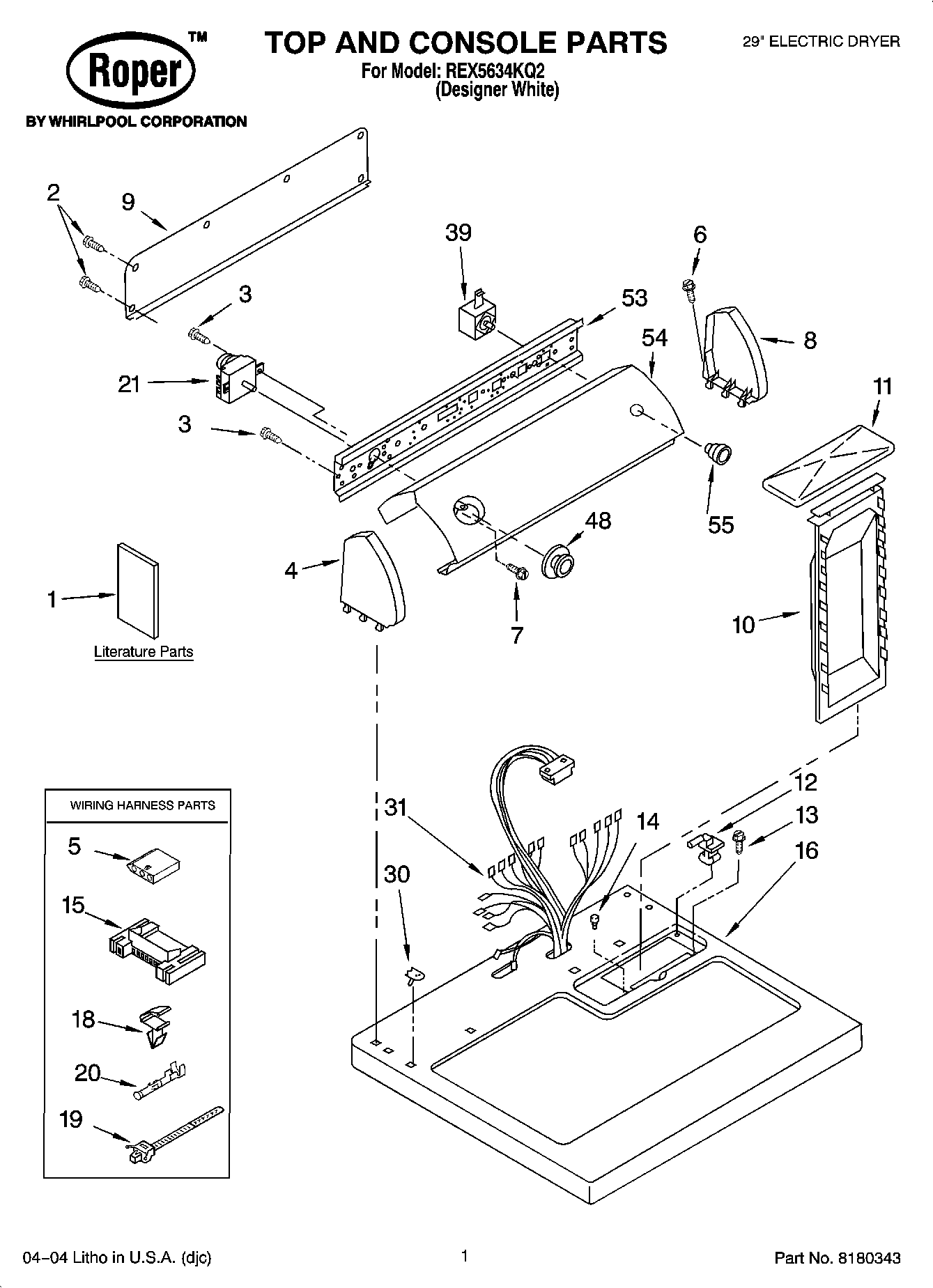

REX5634KQ2 01 – TOP AND CONSOLE PARTS

REX5634KQ2 01 – TOP AND CONSOLE PARTS

Written by

in

REX5634KQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL LIT3397618
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Guide, Use & Care)
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
153395683 Whirlpool Connector
16Top
18WP3394427 Whirlpool Clip
19Tie, Cable
20WP94614 Whirlpool Terminal
21WP8299781 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31WPW10450292 Whirlpool Wire Harness
39WP3977456 Whirlpool Start Switch
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
55350930 Whirlpool White Spray Paint
55WP689790 Whirlpool Dryer Rack
55W11224254 Whirlpool Test Kit
554392065 Whirlpool Dryer Maintenance Kit
55WP3957800 Whirlpool Knob
55799344 Whirlpool Refrigerator Paint
5572017 Whirlpool Appliance Touch-Up Paint White
55350938 Whirlpool Spray Gun
55ACCESSORY PARTS
