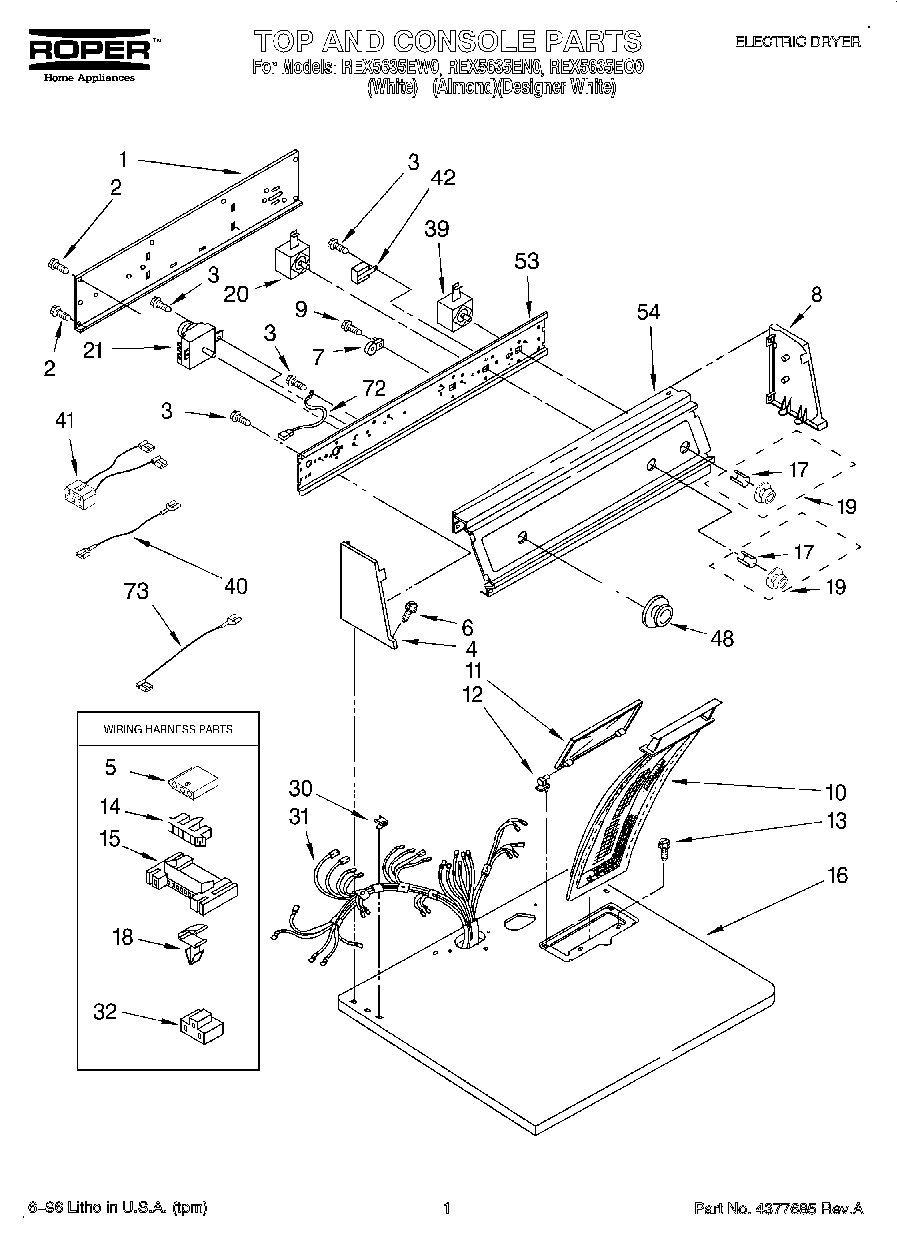

REX5635EN0 01 – SECTION
Written by
in
REX5635EN0 01 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
Instructions, Door Reversing
WPL LIT3397618
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Label, Wiring Diagram
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Guide, Use & Care
350938 Whirlpool Spray Gun
1
Panel, Rear Console
2
WP693995 Whirlpool Screw
3
WPW10139210 Whirlpool Screw
4
Cap, End (L.H.) (White)
4
Cap, End (L.H.) (Black)
5
Connector (Door Switch)
6
WP388326 Whirlpool Screw
7
279872 Whirlpool Resistor
8
Cap, End (R.H.) (Black)
8
Cap, End (R.H.) (White)
9
WP488729 Whirlpool Refrigerator Door Screw
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
Connector, Timer
15
3395683 Whirlpool Connector
16
Top (White)
16
Top (Almond)
17
WP688805 Whirlpool Spring Clip
18
WP3394427 Whirlpool Clip
19
Knob, Control (White)
19
Knob, Control (Black)
20
3399638 Whirlpool Switch
21
WP3976574 Whirlpool Timer
30
WP357213 Whirlpool Hinge Stopper
31
Harness, Wiring
32
3401144 Whirlpool Connector
39
Relay, Push To Start
40
Wire, Jumper (Black)
41
8283286 Whirlpool Wire Harness
42
WP694419 Whirlpool Buzzer Adjuster
48
Timer Knob Assembly
48
For Model REX4635EQ1
53
Bracket, Control
54
Panel, Control
54
FOR MODEL RGX5635EQ0
72
Wire, Ground
73
Wire, Jumper (Tan)
←
