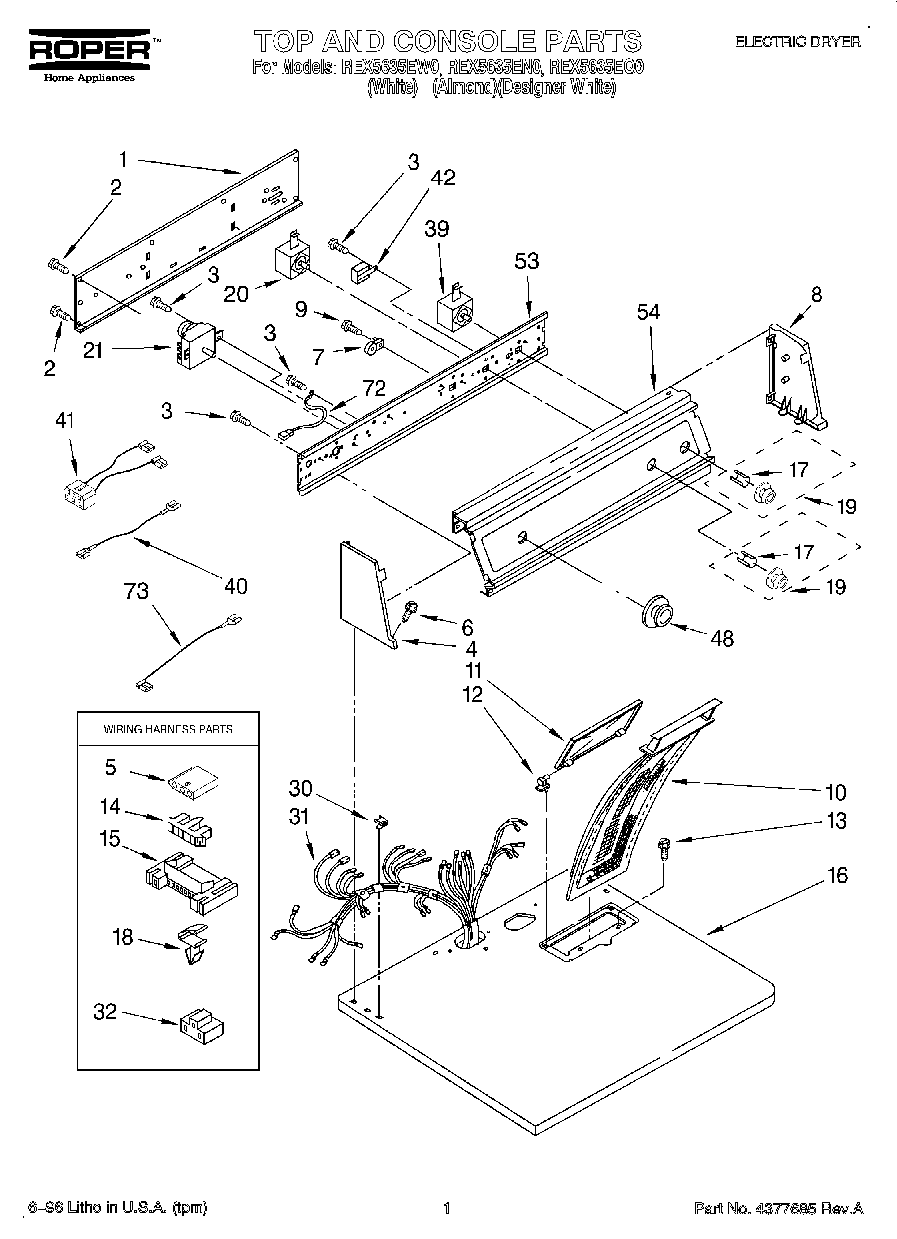

REX5635EQ0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Door Reversing
	WPL LIT3397618
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Guide, Use & Care
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Black)
5	Connector (Door Switch)
6	WP388326 Whirlpool Screw
7	279872 Whirlpool Resistor
8	Cap, End (R.H.) (Black)
8	Cap, End (R.H.) (White)
9	WP488729 Whirlpool Refrigerator Door Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Connector, Timer
15	3395683 Whirlpool Connector
16	Top (White)
16	Top (Almond)
17	WP688805 Whirlpool Spring Clip
18	WP3394427 Whirlpool Clip
19	Knob, Control (White)
19	Knob, Control (Black)
20	3399638 Whirlpool Switch
21	WP3976574 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	3401144 Whirlpool Connector
39	Relay, Push To Start
40	Wire, Jumper (Black)
41	8283286 Whirlpool Wire Harness
42	WP694419 Whirlpool Buzzer Adjuster
48	Timer Knob Assembly
48	For Model REX4635EQ1
53	Bracket, Control
54	Panel, Control
54	FOR MODEL RGX5635EQ0
72	Wire, Ground
73	Wire, Jumper (Tan)
