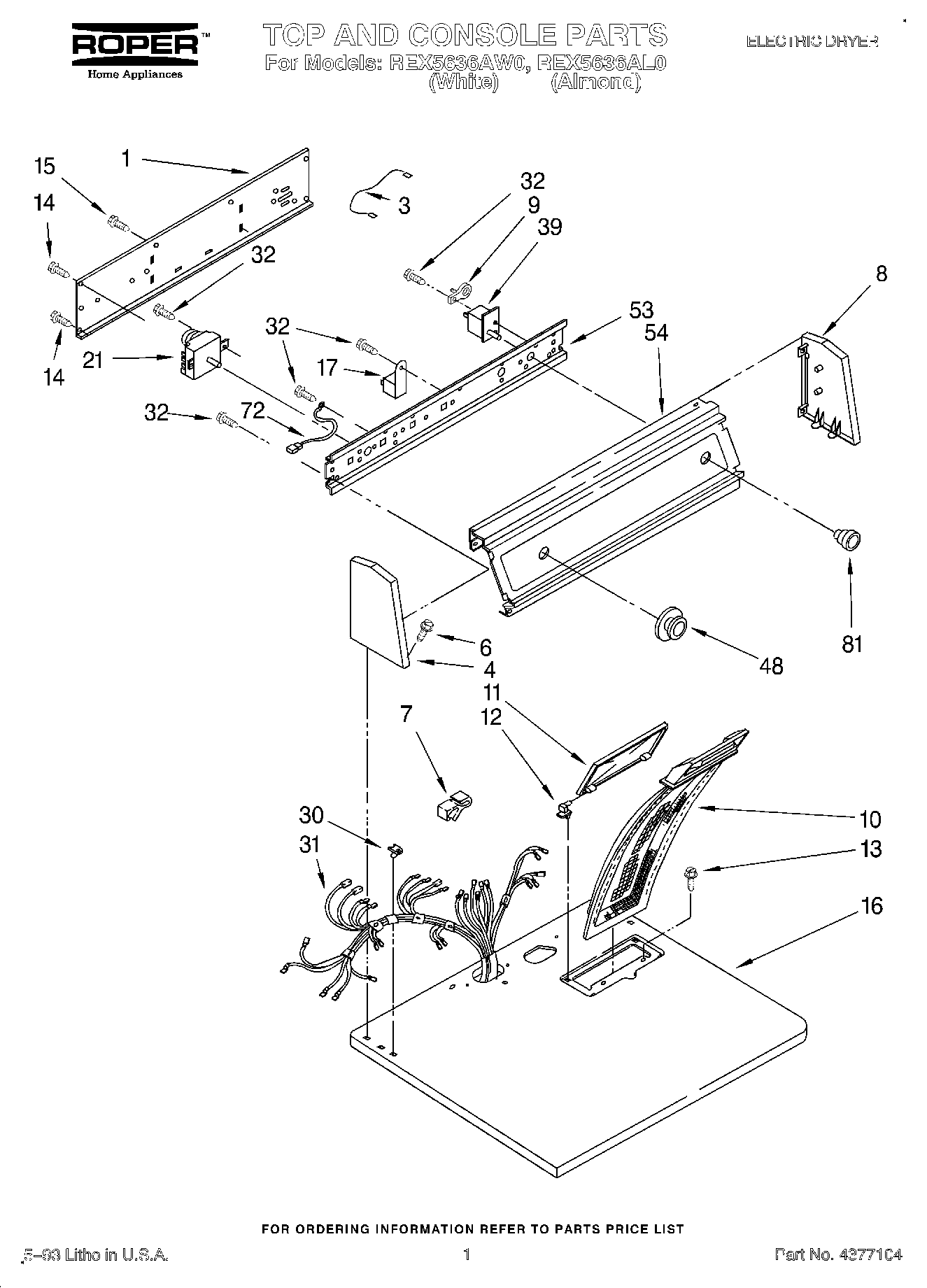

REX5636AW0 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
Instructions, Installation
799344 Whirlpool Refrigerator Paint
Use & Care Guide
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
3Wire, Jumper (Black)
3Wire, Jumper (Blue)
4Cap, End (L.H.)
6WP388326 Whirlpool Screw
7Clip, Retainer
8Cap, End (R.H.)
9279872 Whirlpool Resistor
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP489069 Whirlpool Compactor Screw
15WP693995 Whirlpool Screw
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
21WP3976569 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31279320 Whirlpool Dryer Rear Terminal Block Kit
31Harness, Wiring
32WPW10139210 Whirlpool Screw
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
72Wire, Ground
81Knob, Push-To-Start
