REX6634PQ0 01 – TOP AND CONSOLE PARTS

REX6634PQ0 01 – TOP AND CONSOLE PARTS

Written by

in

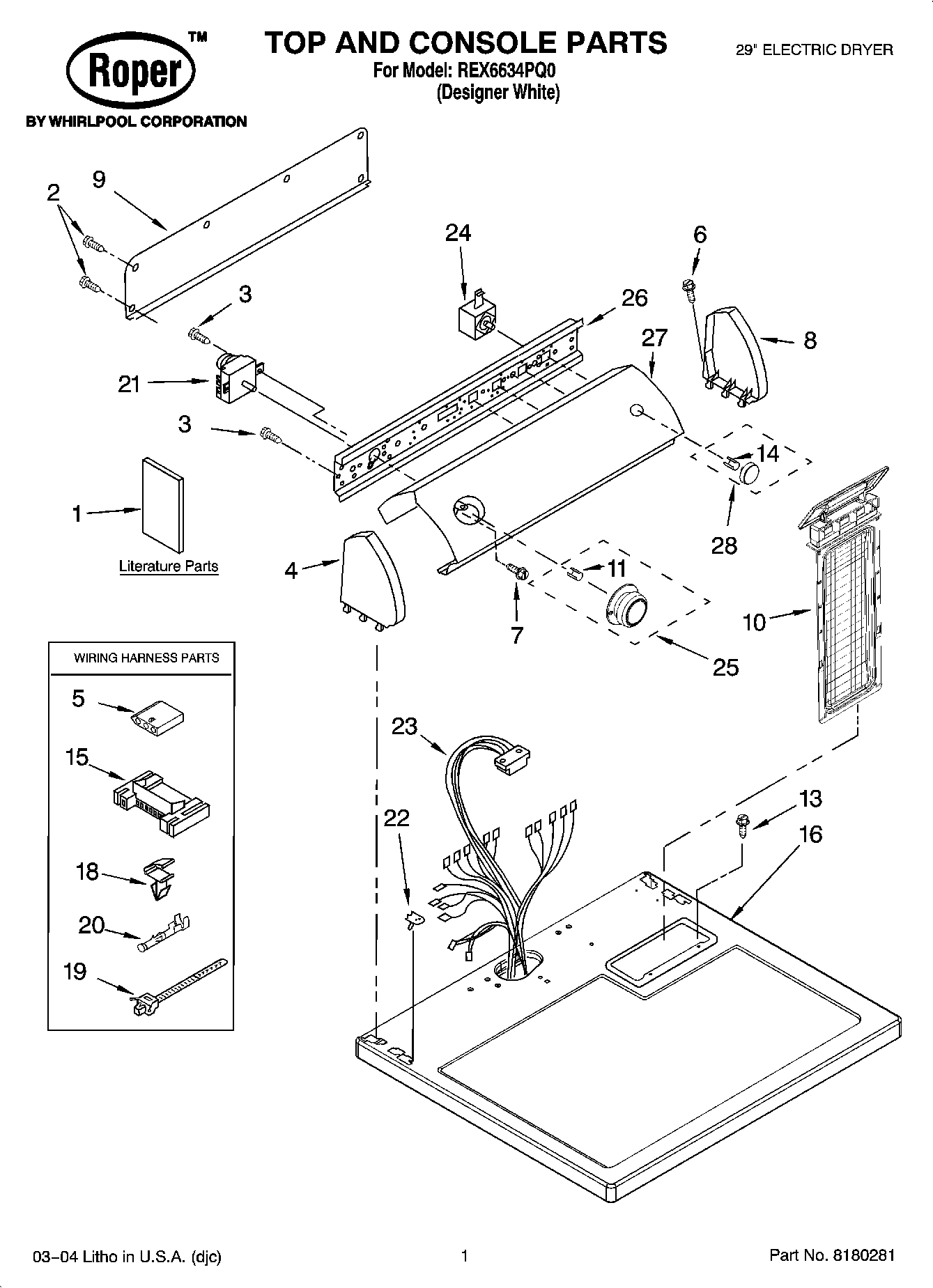

REX6634PQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Guide, Use & Care)
1Literature Parts (Label, Wiring Diagram)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Instructions, Installation)
1WPL 677818
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
153395683 Whirlpool Connector
16Top
18WP3394427 Whirlpool Clip
19Tie, Cable
20WP94614 Whirlpool Terminal
21WP8299781 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25WP8557455 Whirlpool Knob Timer
26Bracket, Control
27Panel, Control
28Knob, Push-To-Start
28WP689790 Whirlpool Dryer Rack
28350930 Whirlpool White Spray Paint
28W11224254 Whirlpool Test Kit
284392065 Whirlpool Dryer Maintenance Kit
28799344 Whirlpool Refrigerator Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350938 Whirlpool Spray Gun
28ACCESSORY PARTS
