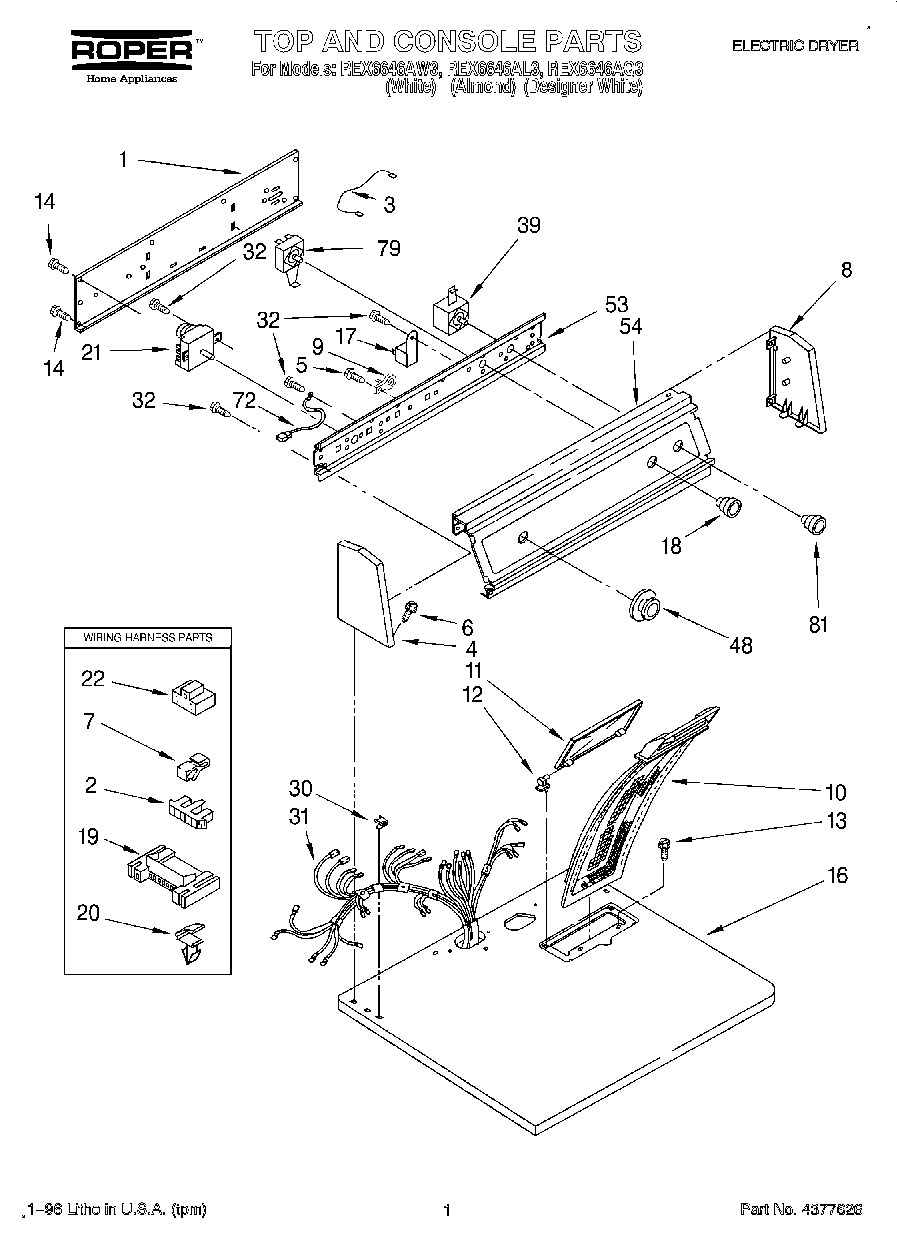

REX6646AQ3 01 – SECTION

REX6646AQ3 01 – SECTION

Written by

in

REX6646AQ3 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Label, Wiring Diagram
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
1Panel, Rear Console
2Connector, Timer
3Wire, Jumper (Blue)
3Wire, Jumper (Violet)
4Cap, End (L.H.)
4FOR MODEL REL4632BQ3
5WP488729 Whirlpool Refrigerator Door Screw
6WP388326 Whirlpool Screw
7Clip, Retainer
8Cap, End (R.H.)
8FOR MODEL REL4632BQ3
9279872 Whirlpool Resistor
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP693995 Whirlpool Screw
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
18Knob, Temperature
18WPL 3354748
193395683 Whirlpool Connector
20WP3394427 Whirlpool Clip
21WP3976574 Whirlpool Timer
223401144 Whirlpool Connector
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WPW10139210 Whirlpool Screw
39WP3398094 Whirlpool Push To Start Switch
48FOR MODEL REL4632BQ3
48Timer Knob Assembly
53Bracket, Control
54FOR MODEL RGX6646AQ2
54Panel, Control
72Wire, Ground
79Switch, Rotary (Temperature Selector)
81FOR MODEL REL4632BQ3
81Knob, Push-To-Start
