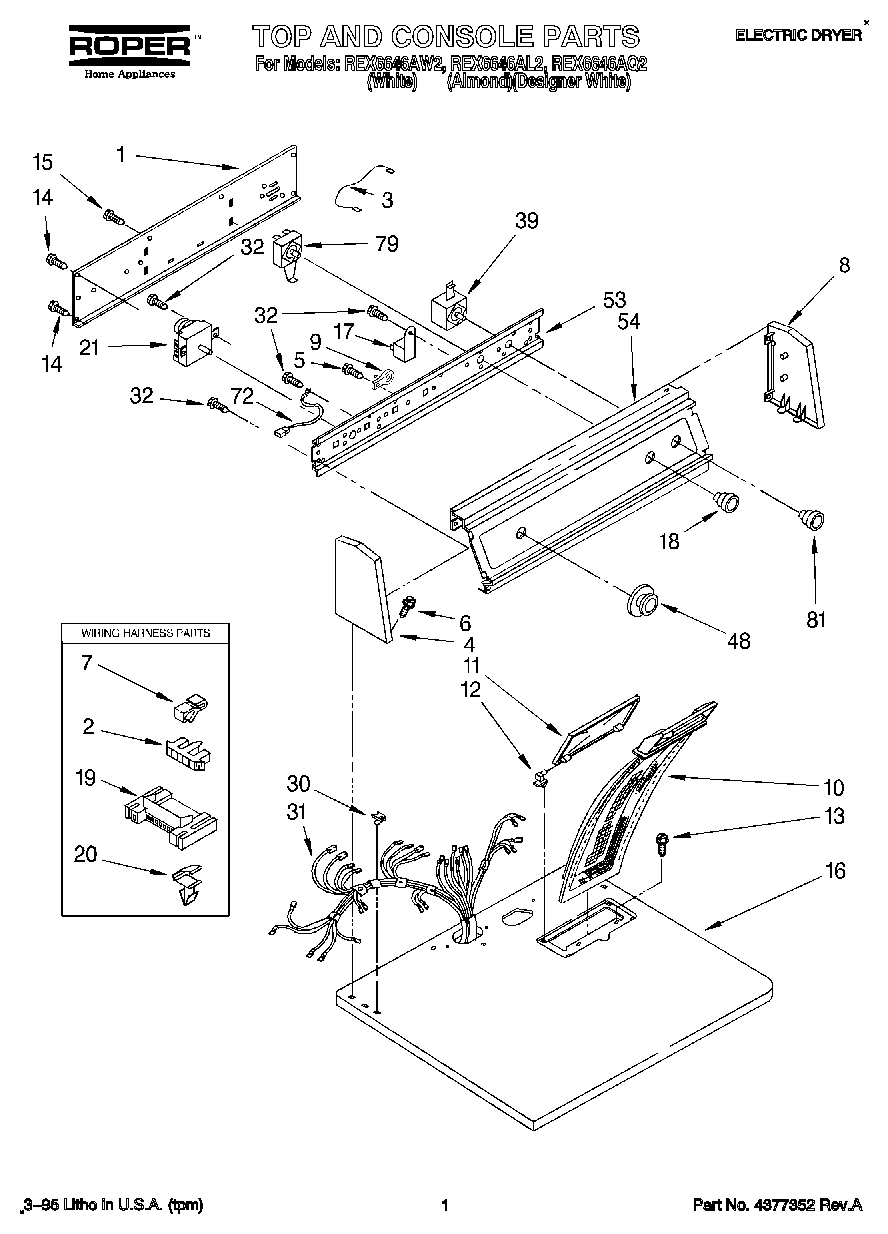

REX6646AW2 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Guide, Use & Care
	Label, Wiring Diagram
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
2	Connector, Timer
3	Wire, Jumper (Violet)
3	Wire, Jumper (Blue)
4	FOR MODEL REL4632BQ3
4	Cap, End (L.H.)
5	WP488729 Whirlpool Refrigerator Door Screw
6	WP388326 Whirlpool Screw
7	Clip, Retainer
8	Cap, End (R.H.)
8	FOR MODEL REL4632BQ3
9	279872 Whirlpool Resistor
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	Knob, Temperature
18	WPL 3354748
19	3395683 Whirlpool Connector
20	WP3394427 Whirlpool Clip
21	WP3976574 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WPW10139210 Whirlpool Screw
39	WP3398094 Whirlpool Push To Start Switch
48	Timer Knob Assembly
48	FOR MODEL REL4632BQ3
53	Bracket, Control
54	FOR MODEL RGX6646AQ2
54	Panel, Control
72	Wire, Ground
79	Switch, Rotary (Temperature Selector)
81	FOR MODEL REL4632BQ3
81	Knob, Push-To-Start
