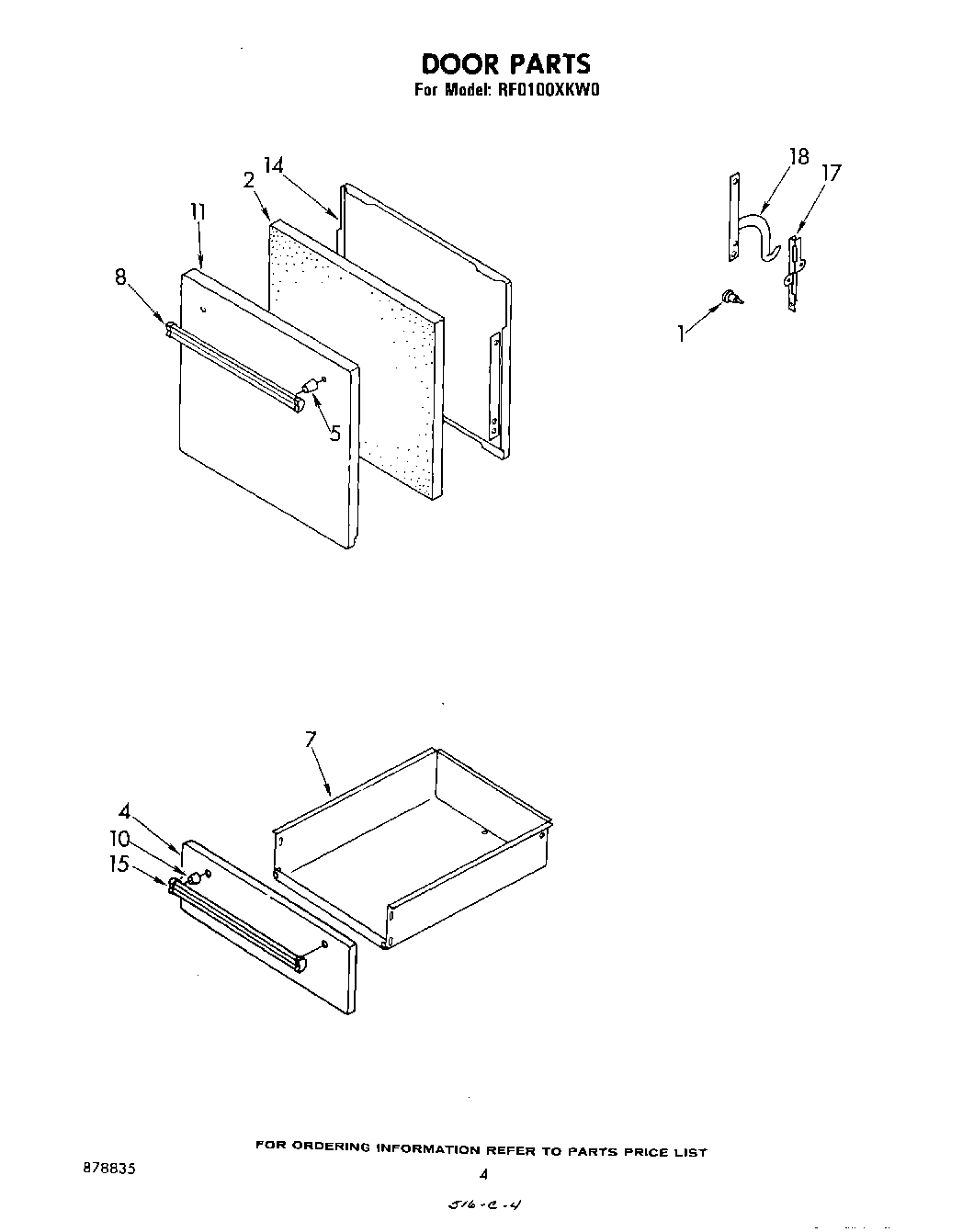

| 1 | Bolt, Shoulder 10-24 x 7/16 (2) |
| 2 | WPW10208653 Whirlpool Insulation |
| 4 | Spacer, Broiler Door Handle (2) |
| 5 | Spacer, Oven Door Handle (2) |
| 7 | Drawer, Utility |
| 8 | Handle, Broiler Door |
| 10 | Handle, Broiler Door |
| 11 | Panel, Oven Door (Coffee) |
| 11 | Panel, Oven Door (Harvest Gold) |
| 11 | Panel, Oven Door (Almond) |
| 11 | Panel, Oven Door (White) |
| 14 | Lining, Oven Door |
| 15 | Panel, Utility Drawer (Almond) |
| 15 | Panel, Utility Drawer (Coffee) |
| 15 | Panel, Utility Drawer (White) |
| 15 | Panel, Utility Drawer (Harvest Gold) |
| 17 | Support, Oven Door (Right Side) |
| 17 | Support, Oven Door (Left Side) |
| 18 | Hinge, Oven Door (Left Side) |
| 18 | Hinge, Oven Door (Right Side) |
