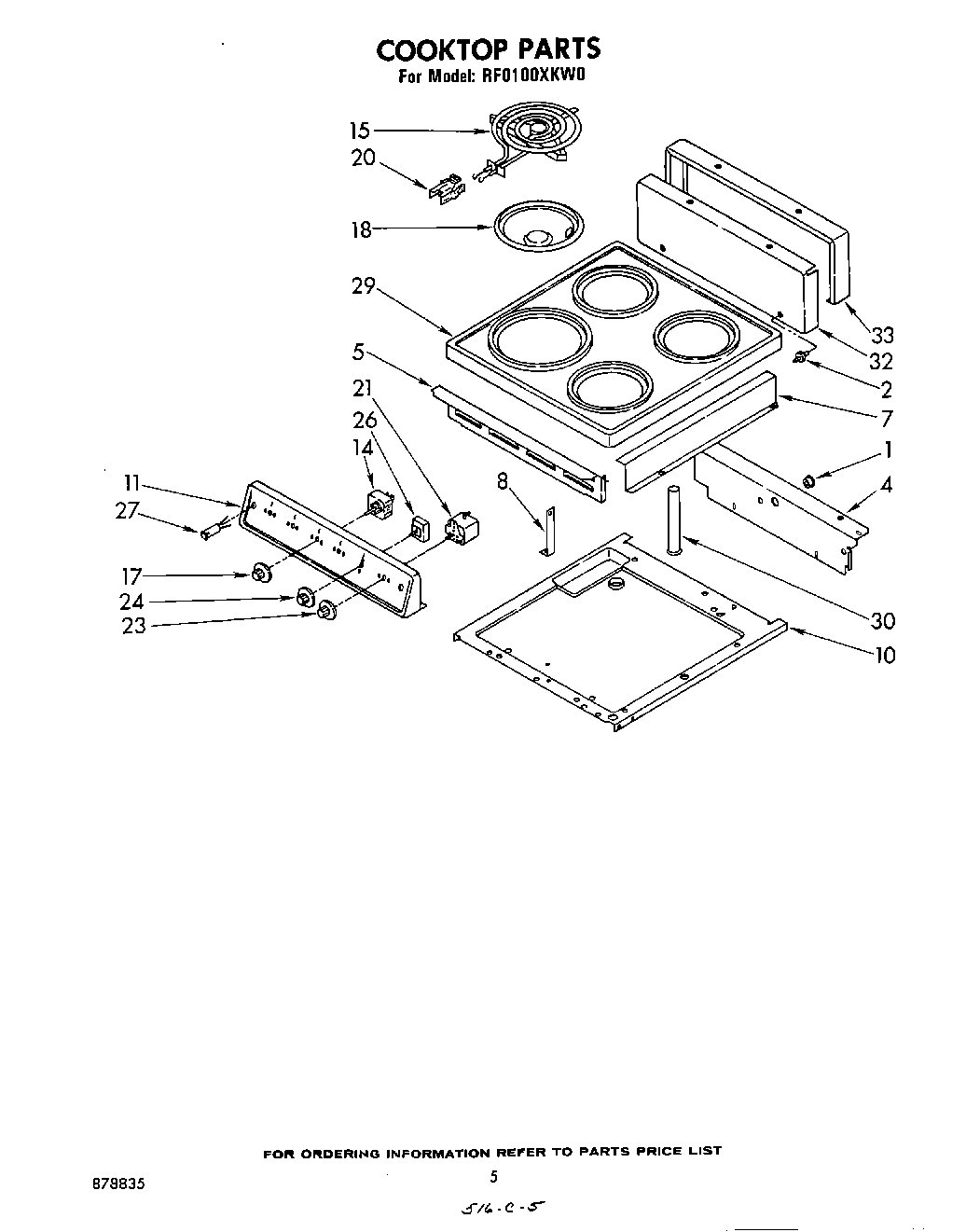

RF0100XKW0 04 – SECTION

Products

Position	Product
1	Bushing, Snap
2	Nut, Spacer (2)
4	Shield, Wire Rear
5	Shield, Control
7	Raceway, Wire
8	Anchor, Cooktop
10	Bottom, Burner Box
11	Panel, Control (Almond)
11	Panel, Control (White)
11	Pipe, Manifold
11	Panel, Control (Harvest Gold)
14	W10900107 Whirlpool Oven Surface Element Switch
15	WPY04100165 Whirlpool Surface Element
15	WP660533 Whirlpool Oven 8" Surface Element
17	Knob, Infinite Control (4)
18	Pan, Reflector (6“ Without Hole (2))
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
20	BURNER RECEPTACLE KIT
21	Control, Oven (Thermostat)
23	Knob, Oven Control
24	Knob, Selector Switch
26	Switch, Selector
27	Light, Indicator (Oven)
27	Light, Indicator (Surface Unit)
29	Top, Main (Almond)
29	Top, Main (Harvest Gold)
29	Top, Main (White)
29	Top, Main (Coffee)
30	Pipe, Oven Vent
32	Panel, Backguard (Almond)
32	Panel, Backguard (Coffee)
32	Panel, Backguard (White)
32	Panel, Backguard (Harvest Gold)
33	Frame, Backguard
