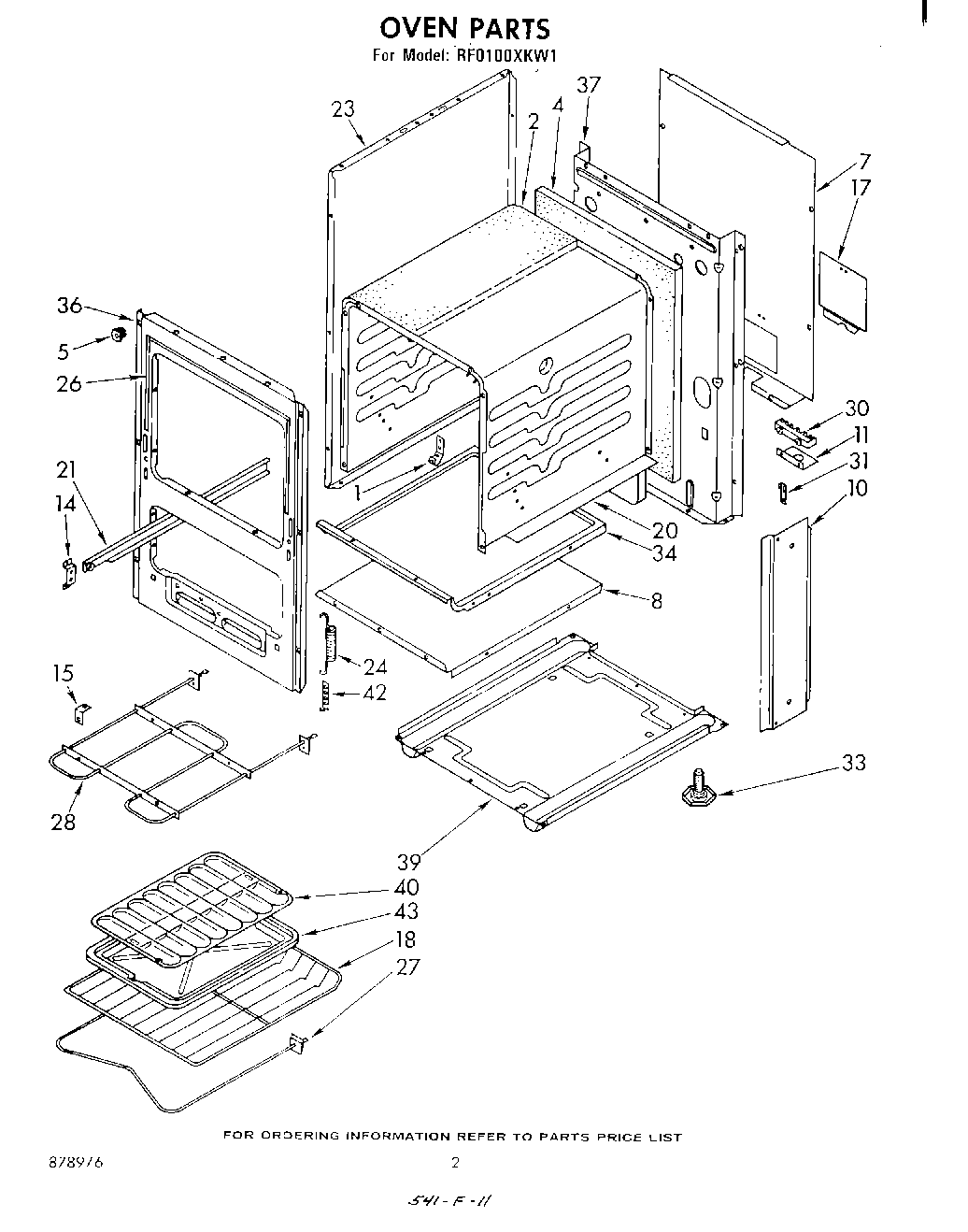

RF0100XKW1 02 – SECTION

Products

Position	Product
1	98005642 Whirlpool Clip
2	WPW10208653 Whirlpool Insulation
5	98460 Whirlpool Nut
7	Shield, Back Wire
8	Support, Oven Insulation
10	Chute, Air Side (2)
11	Bracket, Disconnect
14	Support, Drawer Runner (2)
15	Support, Broil Unit (2)
17	Cover, Terminal Block Access
18	Rack, Oven
20	Oven, 20“ Standard (Non-Serviceable)
21	Runner, Utility Drawer (Left Side)
21	Runner, Utility Drawer (Right Side)
23	Panel, End (2) (Coffee)
23	Panel, End (2) (Almond)
23	Panel, End (2) (Harvest Gold)
23	Panel End (2) (Toast)
23	Panel End (2) (Platinum)
23	Panel, End (2) (White)
24	Spring, Oven Door (2)
26	Seal, Oven Door (Side (2))
26	Seal, Oven Door (Top)
27	Element, Bake
28	Element, Broil
30	WP8203546 Whirlpool Terminal Block
31	Lug, Ground
33	Screw, Leveling (4)
34	Bottom, Oven
36	Front, Main
37	Back, Main
39	Base, Main
40	Tray, Broiler Pan
42	Link, Oven Door Spring
43	List, Repair Parts
43	Insert, Use & Care Guide
43	Instructions, Installation
43	Pan, Broiler
43	Guide, Use & Care
43	Diagram, Wiring
