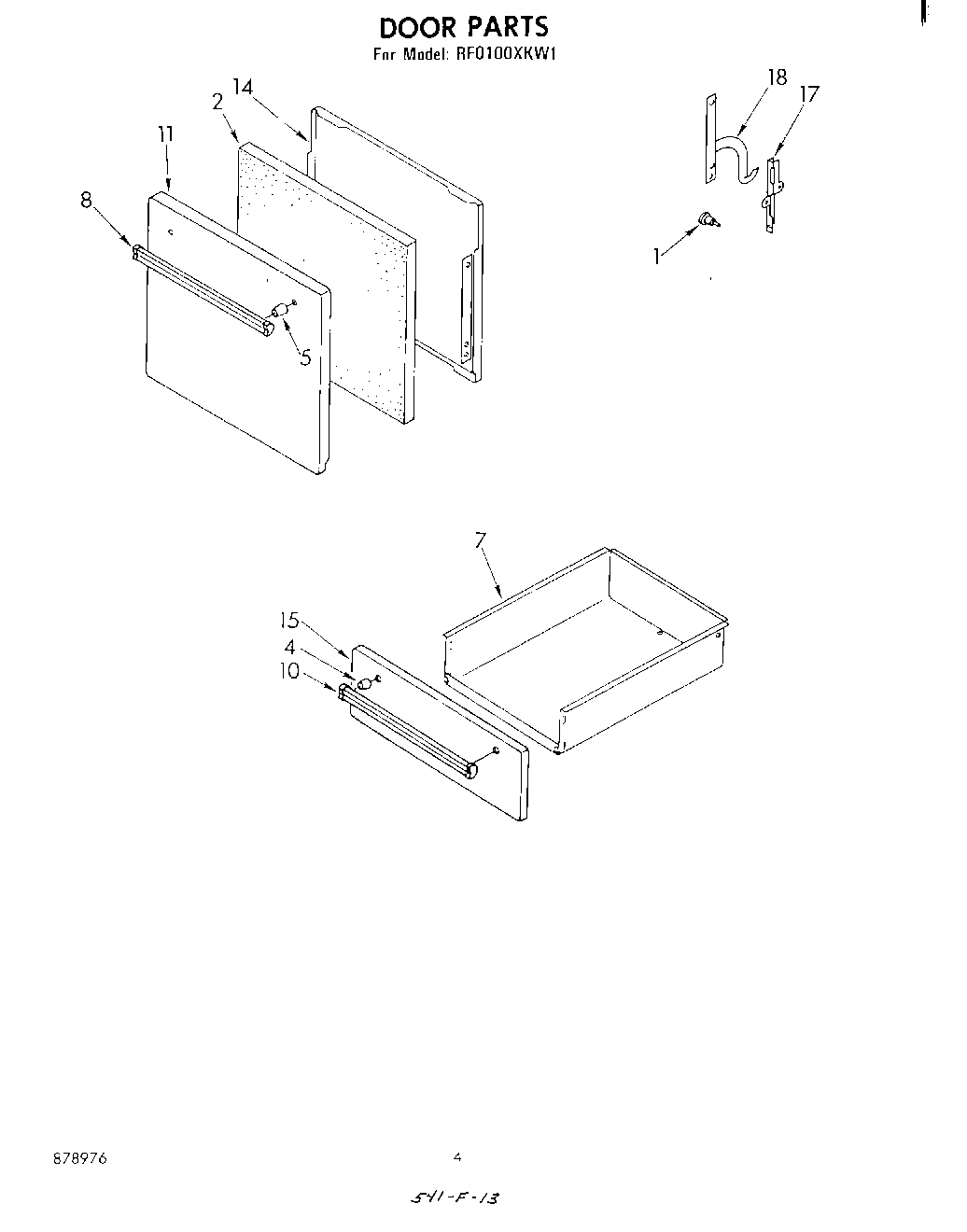

RF0100XKW1 03 – SECTION

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16 (2)
2	WPW10208653 Whirlpool Insulation
4	Spacer, Broiler Door Handle (2)
5	Spacer, Oven Door Handle (2)
7	Drawer, Utility
8	Handle, Broiler Door
10	Handle, Broiler Door
11	Panel, Oven Door (Toast)
11	Panel, Oven Door (Platinum)
11	Panel, Oven Door (Harvest Gold)
11	Panel, Oven Door (Coffee)
11	Panel, Oven Door (White)
11	Panel, Oven Door (Almond)
14	Lining, Oven Door
15	Panel, Utility Drawer (Platinum)
15	Panel, Utility Drawer (Toast)
15	Panel, Utility Drawer (Harvest Gold)
15	Panel, Utility Drawer (White)
15	Panel, Utility Drawer (Coffee)
15	Panel, Utility Drawer (Almond)
17	Support, Oven Door (Left Side)
17	Support, Oven Door (Right Side)
18	Hinge, Oven Door (Left Side)
18	Hinge, Oven Door (Right Side)
