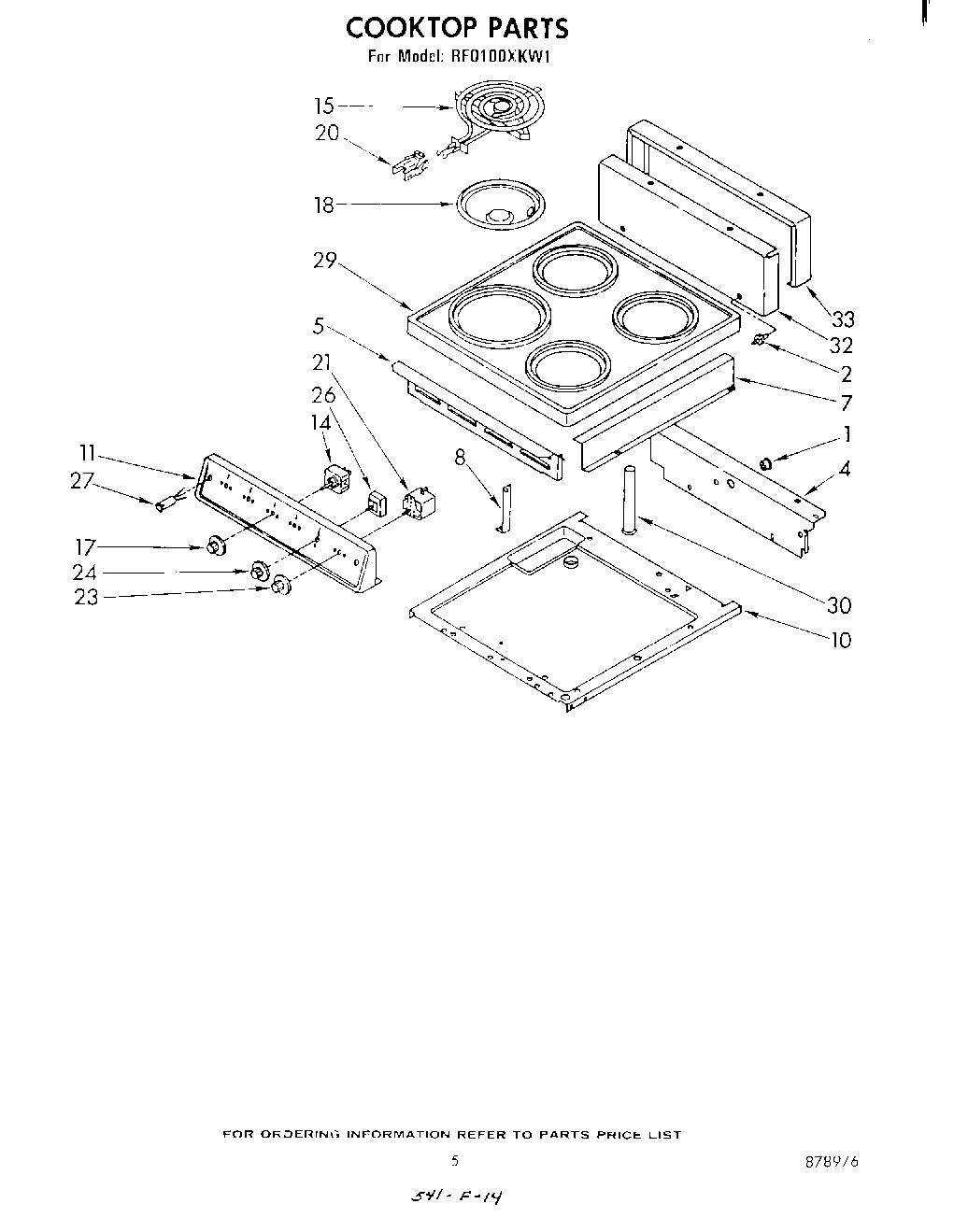

| 1 | Bushing, Snap |
| 2 | Nut, Spacer (2) |
| 4 | Shield, Wire Rear |
| 5 | Shield, Control |
| 7 | Raceway, Wire |
| 8 | Anchor, Cooktop |
| 10 | Bottom, Burner Box |
| 11 | Panel, Control (Almond) |
| 11 | Panel, Control (Coffee) |
| 11 | Panel, Control (Platinum) |
| 11 | Panel, Control (Harvest Gold) |
| 11 | Panel, Control (Toast) |
| 11 | Panel, Control (White) |
| 14 | W10900107 Whirlpool Oven Surface Element Switch |
| 15 | WPY04100165 Whirlpool Surface Element |
| 15 | WP660533 Whirlpool Oven 8" Surface Element |
| 17 | Knob, Infinite Control (4) |
| 18 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 18 | DRIP BOWL 8" W/HOLE CHROME |
| 18 | Pan, Reflector (6`` Without Hole (2)) |
| 20 | BURNER RECEPTACLE KIT |
| 21 | Control, Oven (Thermostat) |
| 23 | Knob, Oven Control |
| 24 | Knob, Selector Switch |
| 26 | Switch, Selector |
| 27 | Light, Indicator (Surface Unit) |
| 27 | Light, Indicator (Oven) |
| 29 | Top, Main (Platinum) |
| 29 | Top, Main (Toast) |
| 29 | Top, Main (Harvest Gold) |
| 29 | Top, Main (White) |
| 29 | Top, Main (Almond) |
| 29 | Top, Main (Coffee) |
| 30 | Pipe, Oven Vent |
| 32 | Panel, Backguard (Toast) |
| 32 | Panel, Backguard (Harvest Gold) |
| 32 | Panel, Backguard (White) |
| 32 | Panel, Backguard (Coffee) |
| 32 | Panel, Backguard (Almond) |
| 32 | Panel, Backguard (Platinum) |
| 33 | Frame, Backguard |
