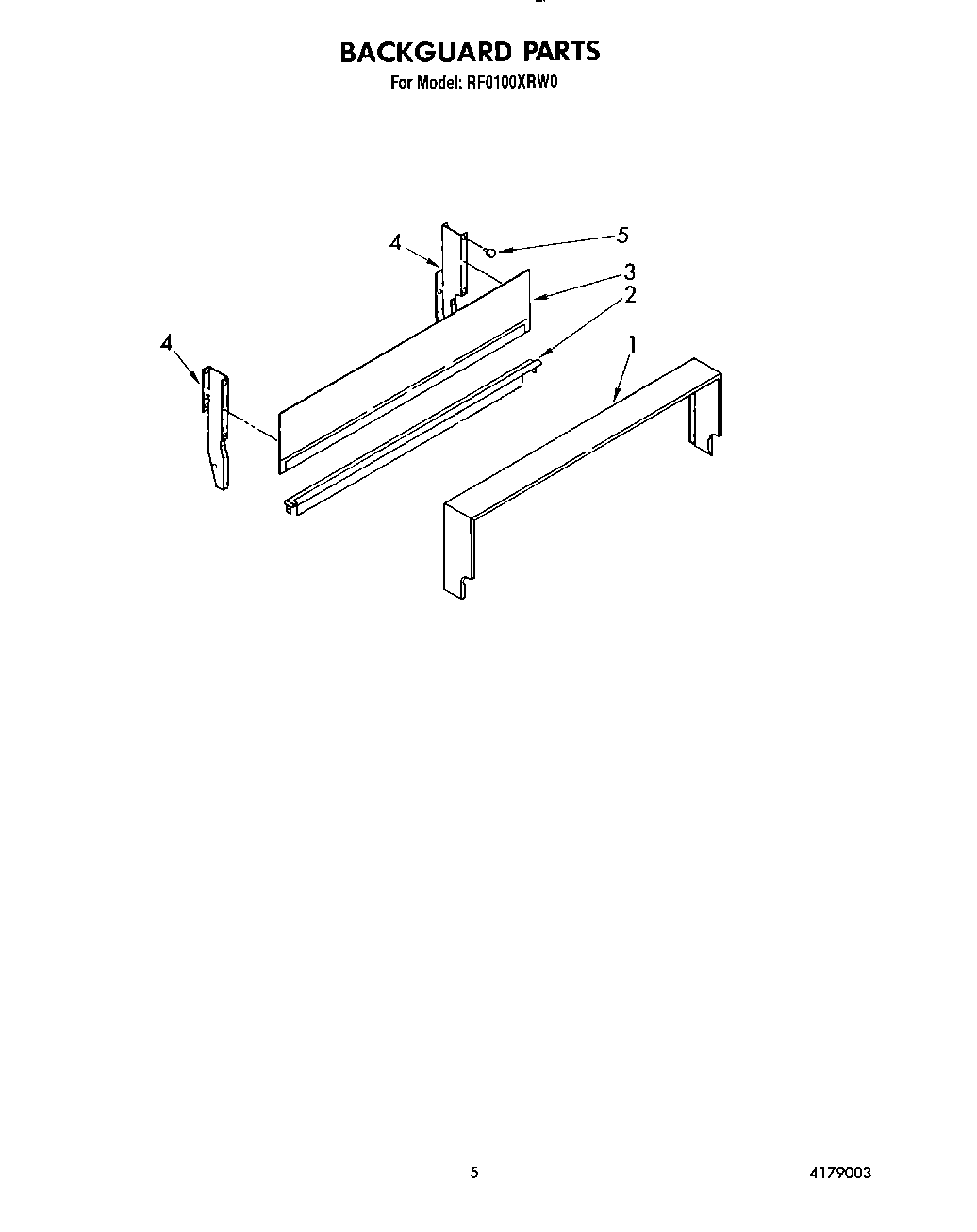

RF0100XRW0 04 – BACKGUARD

Written by

Products

Position	Product
1	Screw, 10-12 X 3/8 (2)
1	Frame
2	Screw, 10-12 X 1/2 (4)
2	Bottom, Backguard
3	Back Guard Panel
4	Screw, 10-32 X 1/2 (1)
4	Support, Backguard (Left Hand)
4	Support, Backguard (Right Hand)
5	Bumper, Rubber (6)
