RF0100XRW0 05 – OVEN DOOR

RF0100XRW0 05 – OVEN DOOR

Written by

in

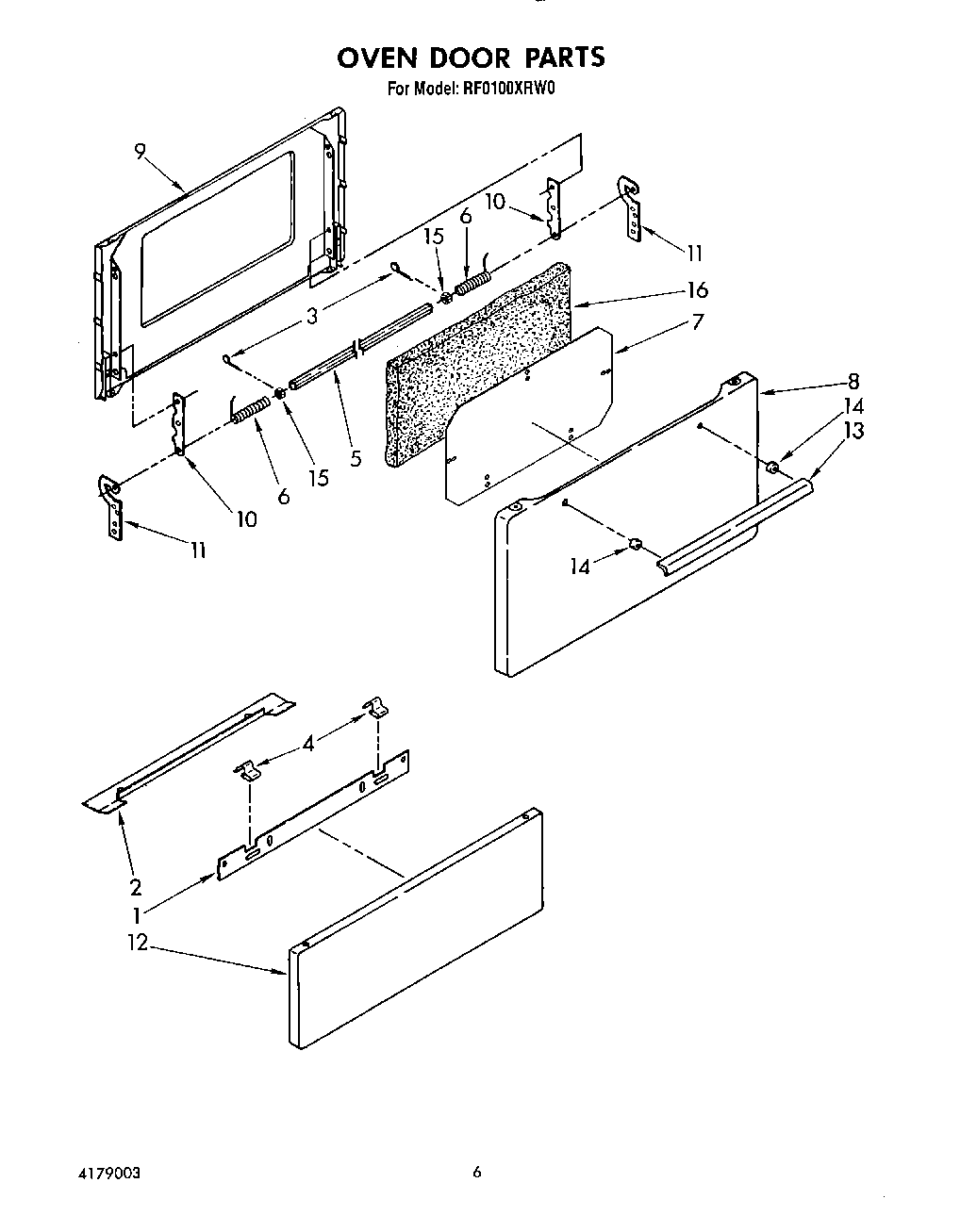

RF0100XRW0 05 – OVEN DOOR

Products

Position	Product
1	Support, Clip
2	Bracket
3	Pin
4	Clip, Broiler
5	Rod
6	Spring (Left)
6	Spring (Right)
7	Baffle
8	Panel, Door (Toast)
8	Panel, Door (Platinum)
8	Panel, Door (Almond)
8	Panel, Door (White)
9	Liner, Door
10	Hinge (2)
11	Arm, Hinge (Left)
11	Arm, Hinge (Right)
12	Panel (Almond)
12	Panel (White)
12	Panel (Platinum)
12	Panel (Toast)
13	Handle, Broiler Door
14	Spacer (4)
15	Winder
16	Insulation
