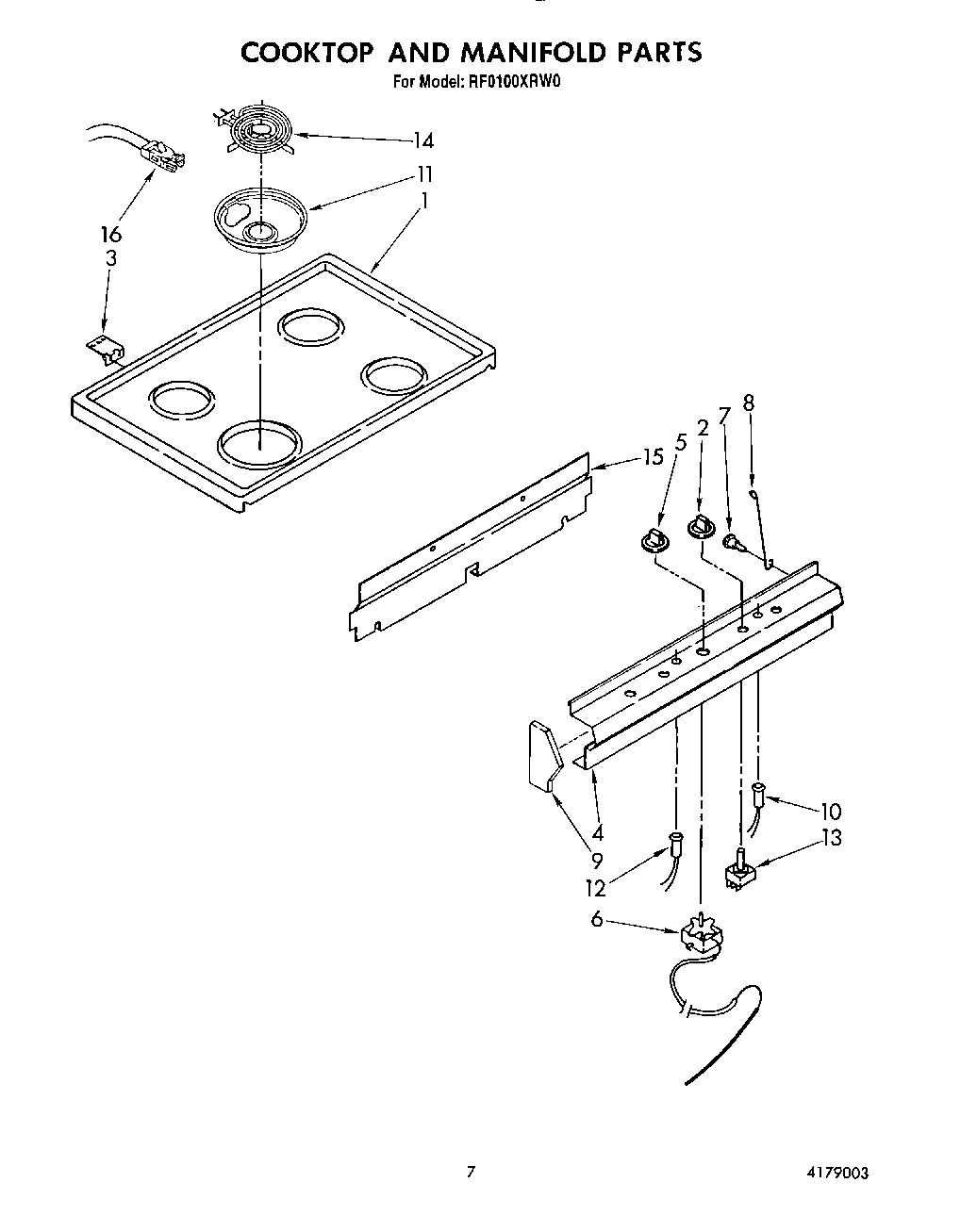

RF0100XRW0 06 – COOKTOP AND MANIFOLD

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (White)
1Cooktop (Toast)
1Cooktop (Platinum)
2Knob, Burner (4)
3Hinge, Maintop (2)
3WP308685 Whirlpool Microwave Screw
3Speed Clip (4)
3SCREW
4Panel, Manifold
5Knob, Thermostat
6Thermostat
7Screw
8Rod, Support
9Endcap (R.H.)
9Endcap (L.H.)
10Light, Indicator (Oven)
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12Light, Indicator (Surface Unit)
13W10900107 Whirlpool Oven Surface Element Switch
14Unit, Surface (8“)
14Unit, Surface (6“)
16BURNER RECEPTACLE KIT
