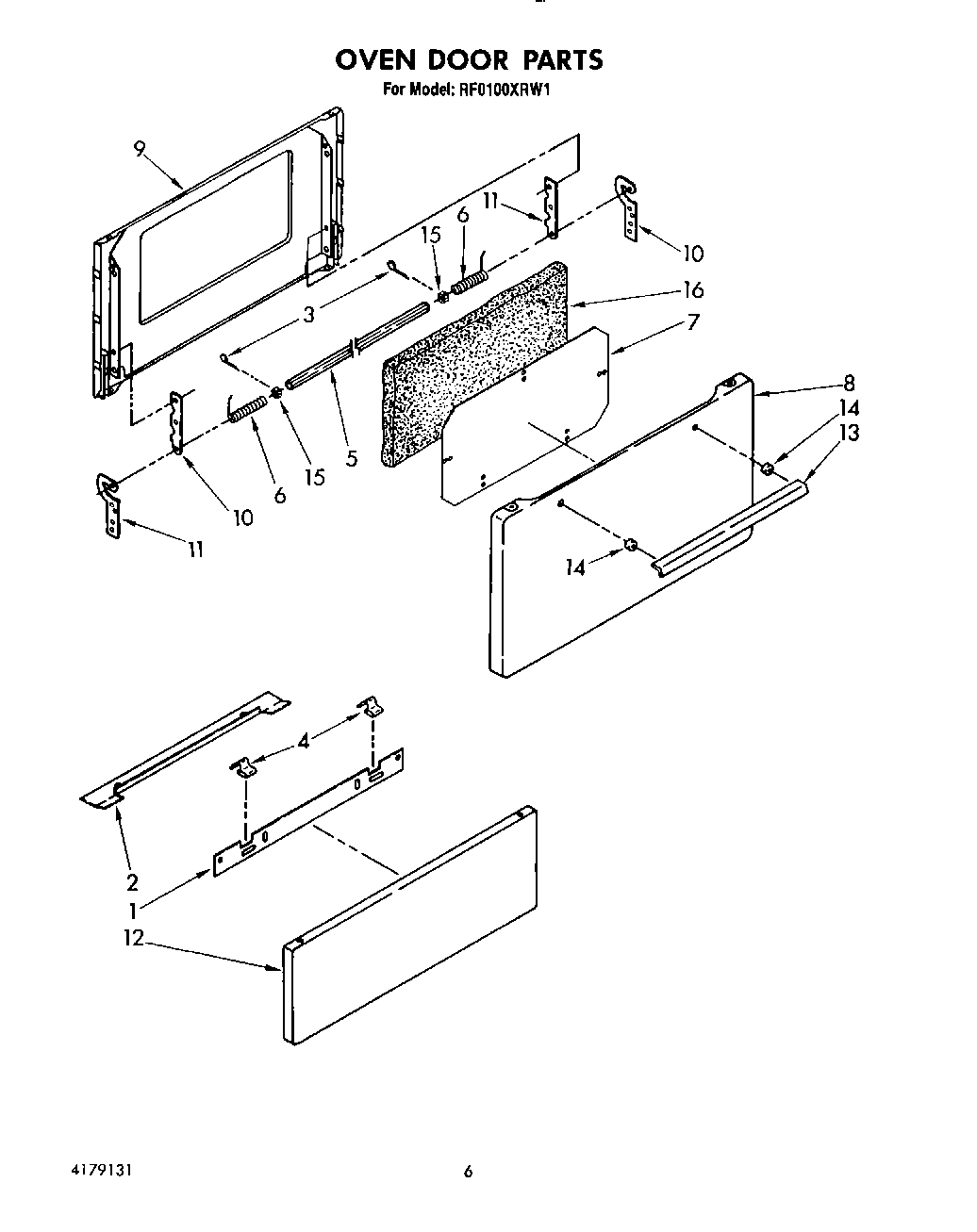

RF0100XRW1 05 – OVEN DOOR

Products

Position	Product
1	Support, Clip
2	Bracket
3	Pin
4	Clip, Broiler
5	Rod
6	Spring (Left)
6	Spring (Right)
7	Baffle
8	Panel, Door (Toast)
8	Panel, Door (Platinum)
8	Panel, Door (Almond)
8	Panel, Door (White)
9	Liner, Door
10	Hinge (2)
11	Arm, Hinge (Left)
11	Arm, Hinge (Right)
12	Panel (Almond)
12	Panel (White)
12	Panel (Platinum)
12	Panel (Toast)
13	Handle, Broiler Door
14	Spacer (4)
15	Winder
16	Insulation
