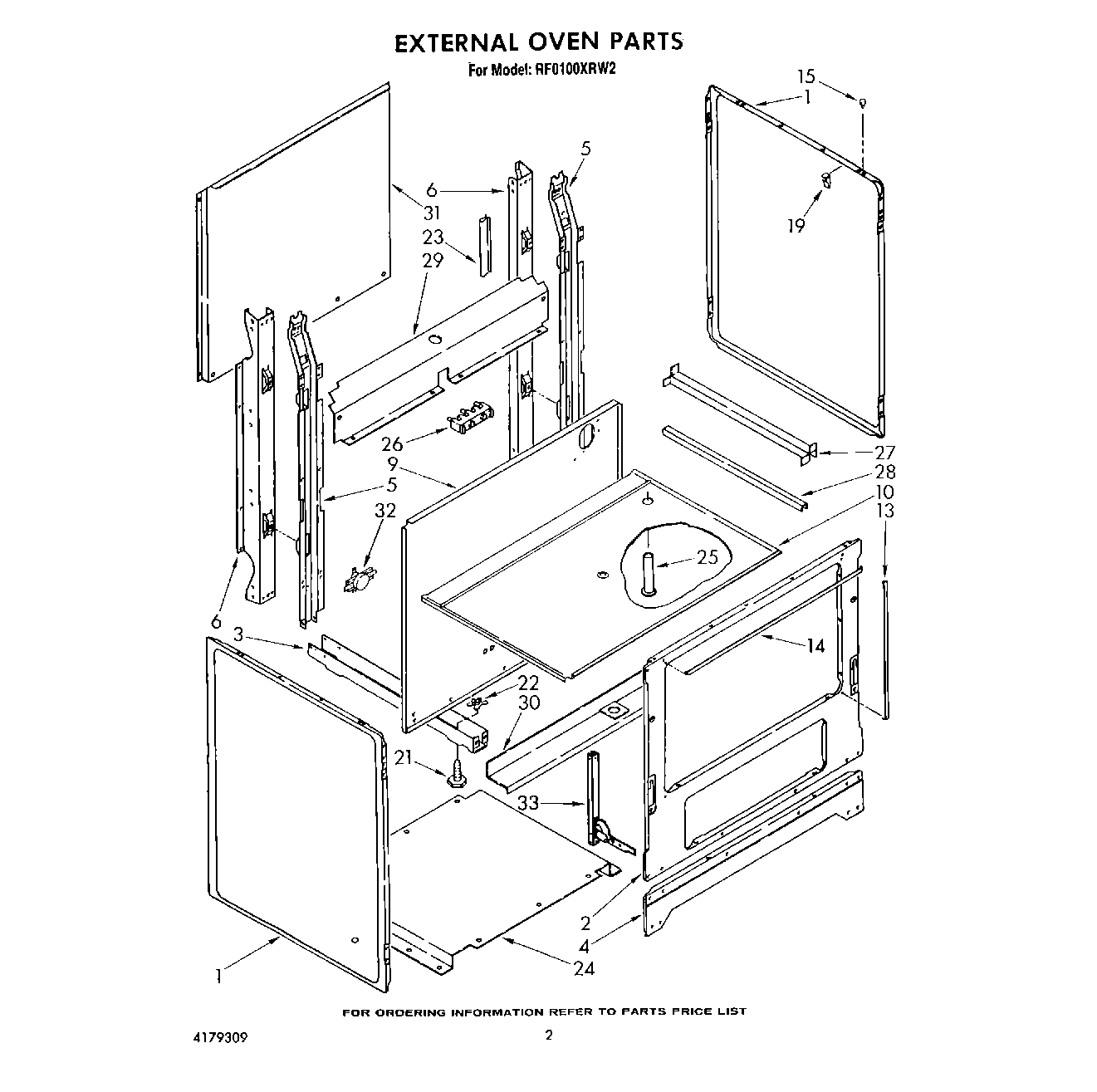

RF0100XRW2 02 – EXTERNAL OVEN, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instuctions, Installation
	Guide, Use & Care
	WPL LIT313358
1	Panel, Side (2) (Platinum)
1	Panel, Side (2) (Toast)
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	SCREW
6	Support, Rear (2)
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Light Gray)
15	Bumper, Cooktop (2)
19	Clip, Wire
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Panel, Bottom
25	Tube, Vent
26	WP8203546 Whirlpool Terminal Block
27	Ignitor (R.H.)
28	Ignitor (L.H.)
29	Cover, Wire
30	Support
31	Cover, Rear
32	Disc, Thermo
33	FOIL, ALUMINUM OVEN (18“ X 25 )
33	WPW10208653 Whirlpool Insulation
33	Hinge, Door (2)
